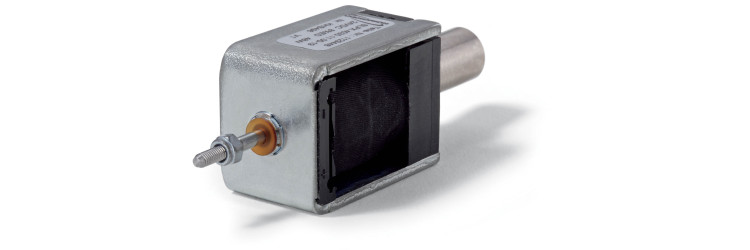

LCM 010 015-DC 5%

LCM 010 015-DC 5%


Monostable solenoid

Solenoids 'Monostables Series' have a monostable function. By emitting current into the coil, the nucleus is attracted. Arrived in internal stop, it is maintained in the body by a permanent magnet and without power. To bring out the core of the body, the coil will be fed with a reverse current (thus canceling the magnet's field) and an external force (eg spring) will act on the core to bring it back to its original position. In upright position, consider the core weight.
Solenoids
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Stroke
2 mm
Internal return spring
no
Duration of attraction
30 ms
Duty cycle
5 %
Duration of the cycle for the calculation
5 min
Power
15,8 W
Connection
Free wires
Insulation class
E
Standard voltages
24 V
IP protection
IP00
Body length
26 mm
Width solenoid
10 mm
Coil weight
5 g
Height
15 mm
Total weight
22 g
Product range
Monostable solenoid
