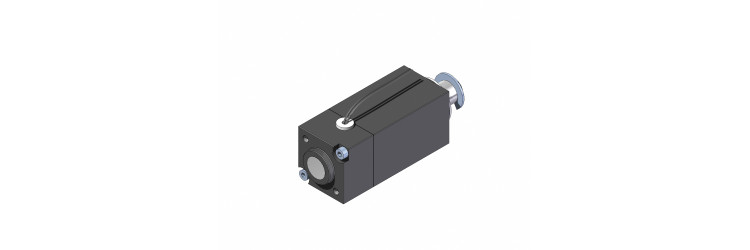

CU30-10/CP-DC 100% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Lock Series single-acting solenoids are designed for locking applications. They have the ability to accept high radial efforts. They are equipped with an internal spring. Some are in pulling standart and other pushers.
Solenoids
- Stroke
- 10 mm
- Internal return spring
- Integrated with DC 100%: 1 to 1,5N
- Duration of attraction
- 65 ms
- Recoil time
- 48 ms
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 4 min
- Power
- 7,5 W
- Connection
- 150mm free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP40
- Body length
- 73 mm
- Width solenoid
- 30 mm
- Coil weight
- 60 g
- Height
- 30 mm
- Total weight
- 330 g
- Product range
- Solenoid for simple operation
