ECR90-25- DC40% Solenoids

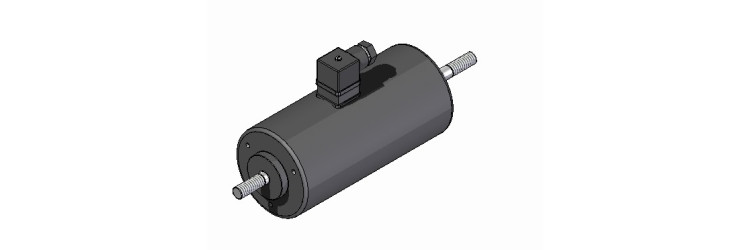

Solenoid for double maneuvering
Solenoid for double maneuvering
The dual-action dual cylindrical solenoid allows maneuvering in both directions. Due to lack of current in the 2 coils of this device, the core becomes free again and does not maintain its position of end of race. It is compact and robust. In vertical position, take into account the weight of the core.
Solenoids
- Stroke
- 25 mm

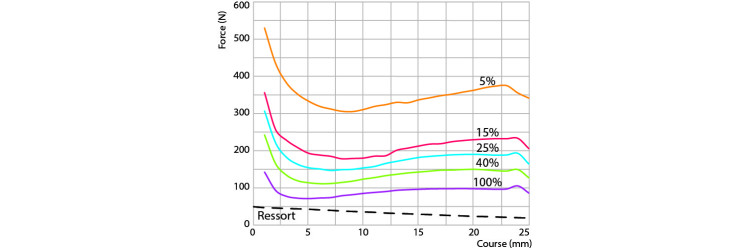

- Force at beginning of stroke
- 126 N
- Force at end of stroke
- 379 N
- Internal return spring
- no
- Duration of attraction
- 488 ms
- Recoil time
- 488 ms
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 125 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP40

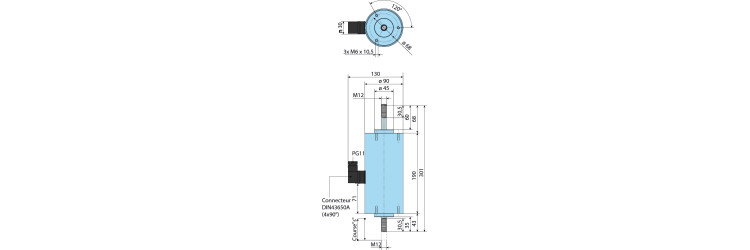

- Body length
- 206 mm
- Coil weight
- 900 g
- Total weight
- 8500 g
- Product range
- Solenoid for double maneuvering
