ECR40-07- DC100% Solenoids
Solenoid for double maneuvering
Solenoid for double maneuvering

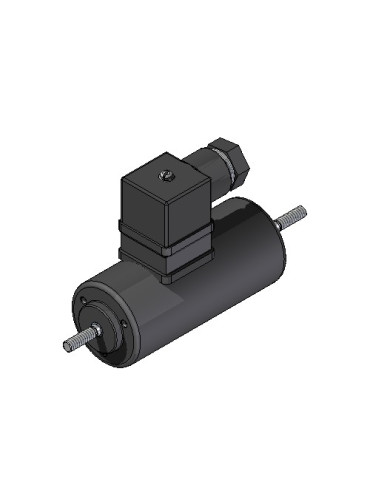

ECR40-07- DC100% : this cylindrical double-acting solenoid from the 'Dual Coil Series' allows operation in both directions. When power is cut to both coils of this device, the core becomes free and does not maintain its end position. It is compact and robust. In a vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for double maneuvering

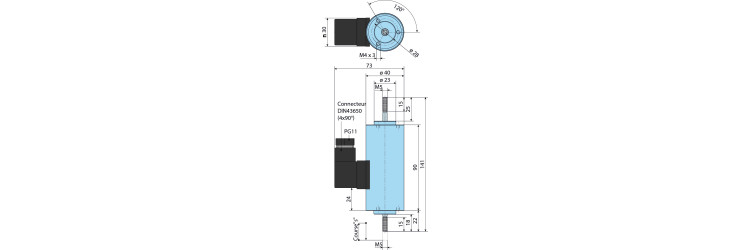

- Body length
- 98
- Body length
- 98 mm
- Coil weight
- 140 g
- Coil weight
- 140
- Total weight
- 800
- Total weight
- 800 g
- Product range
- Solenoid for double maneuvering
- Function
- Pulling/pushing
- Diameter
- 40
- Diameter
- 40 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 7
- Stroke
- 7 mm

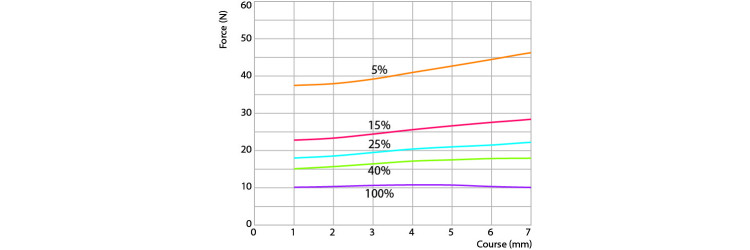

- Force at beginning of stroke
- 10
- Force at beginning of stroke
- 10 N
- Force at end of stroke
- 10,4
- Force at end of stroke
- 10,4 N
- Internal return spring
- no
- Duration of attraction
- 115
- Duration of attraction
- 115 ms
- Recoil time
- 115
- Recoil time
- 115 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 7
- Duration of the cycle for the calculation
- 7 min
- Power
- 13
- Power
- 13 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
