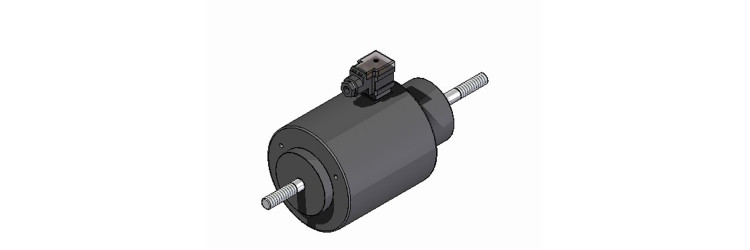

ECH150-40- DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoid simple maneuvering. Machined cylindrical design, these robust electromagnets deliver high forces. In upright position, consider the weight of the core.
Solenoids
- Stroke
- 40 mm

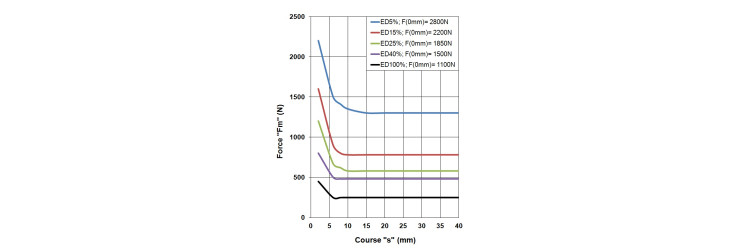

- Force at beginning of stroke
- 780 N
- Force at end of stroke
- 2200 N
- Internal return spring
- no
- Duration of attraction
- 829 ms
- Recoil time
- 517 ms
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 750 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP40

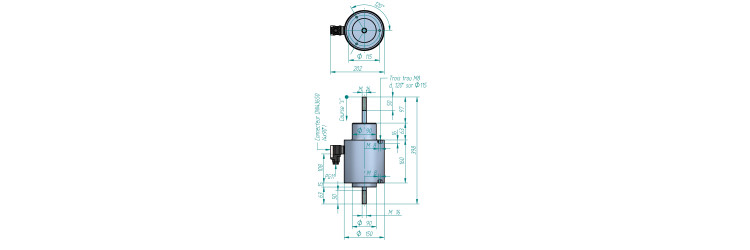

- Body length
- 238 mm
- Coil weight
- 4600 g
- Total weight
- 21000 g
- Product range
- Solenoid for simple operation
