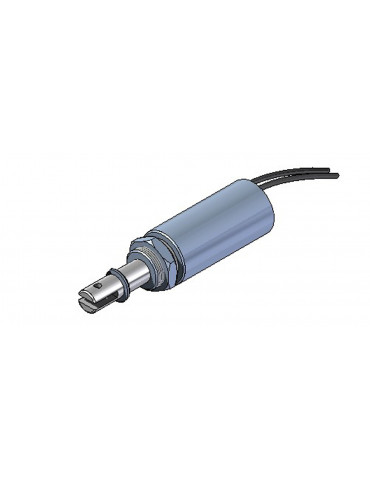

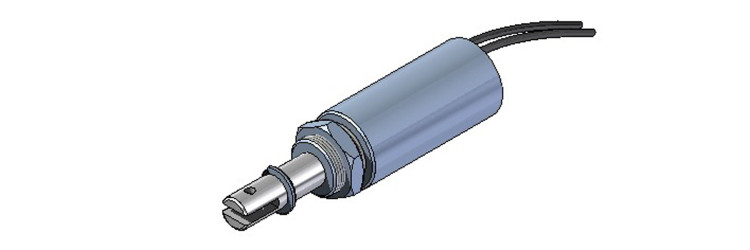

ECM19-10T - DC40% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoids simple maneuvering. Machined cylindrical design, these rugged electromagnets are easily housed and fixed in small footprint. The pushing or pulling function is provided by different devices. In upright position, consider the weight of the core.
Solenoids
- Stroke
- 10 mm

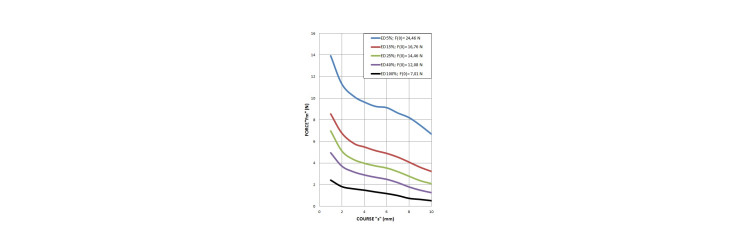

- Force at beginning of stroke
- 1,2 N
- Force at end of stroke
- 12 N
- Internal return spring
- yes
- Duration of attraction
- 40 ms
- Recoil time
- 39 ms
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 2 min
- Power
- 17 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP30

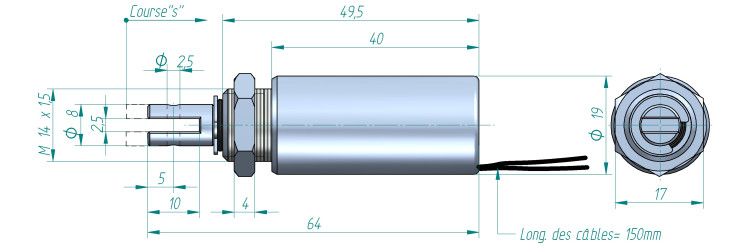

- Body length
- 49,5 mm
- Coil weight
- 20 g
- Total weight
- 80 g
- Product range
- Solenoid for simple operation
