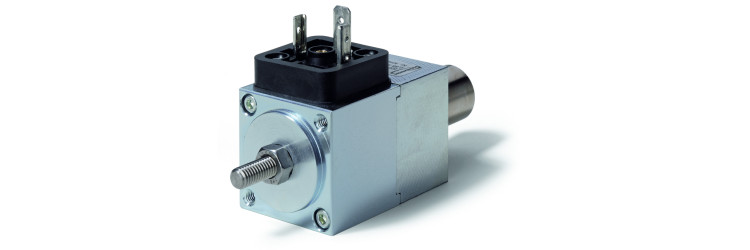

LHP 035 053 - DC5%-stroke 15 Solenoids
Solenoid for simple operation
Solenoid for simple operation
Simple operating solenoid, the 'High Performance Series' have a functioning similar to the CU but they proceed from a completely innovative magnetic principle. These electromagnets have an excellent energy efficiency to provide very high forces for a small footprint. Many different races exist for the same size. In vertical position, take into account the weight of the core.
Solenoids
- Stroke
- 15 mm
- Internal return spring
- no
- Duration of attraction
- 159 ms
- Recoil time
- 78 ms
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 174 W
- Connection
- Free wires
- Insulation class
- F
- Standard voltages
- 24 ou 205 V
- IP protection
- IP 40
- Body length
- 60 mm
- Width solenoid
- 35 mm
- Coil weight
- 110 g
- Height
- 35 mm
- Total weight
- 450 g
- Product range
- Solenoid for simple operation
