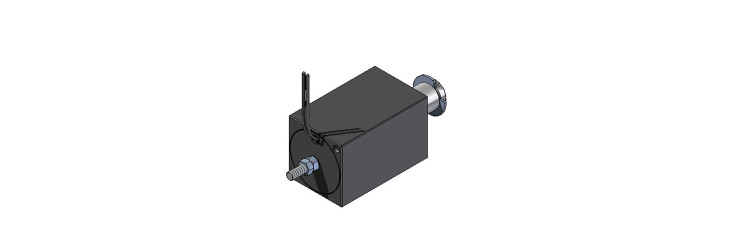

CU40-15/C - DC40% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoid simple maneuvering. These 'Compact Series' electro-magnets, which have a machined parallelepiped design, are very robust and compact. They are designed for intensive use in demanding applications. In upright position, consider the weight of the core.
Solenoids
- Stroke
- 15 mm
- Force at beginning of stroke
- 13,5 N
- Force at end of stroke
- 24,5 N
- Internal return spring
- yes
- Duration of attraction
- 98 ms
- Recoil time
- 60 ms
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 4 min
- Power
- 30 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP 40

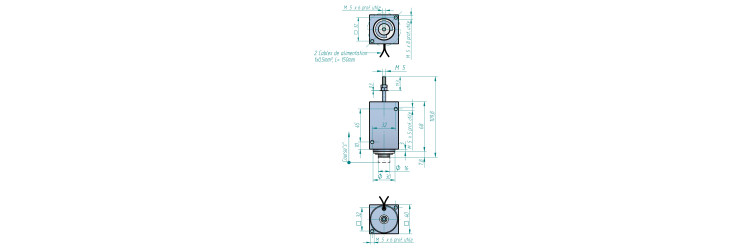

- Body length
- 68 mm
- Width solenoid
- 40 mm
- Coil weight
- 85 g
- Height
- 40 mm
- Total weight
- 665 g
- Product range
- Solenoid for simple operation
