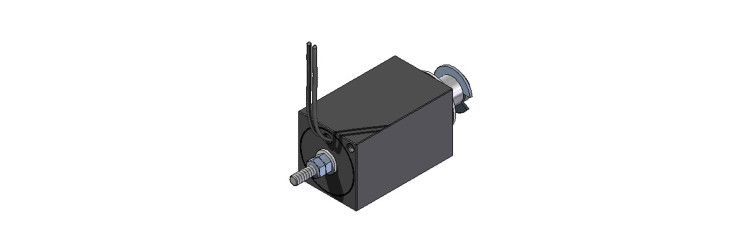

CU30-10/C - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation
Solenoid simple maneuvering. These 'Compact Series' electro-magnets, which have a machined parallelepiped design, are very robust and compact. They are designed for intensive use in demanding applications. In upright position, consider the weight of the core.
Solenoids
- Stroke
- 10 mm

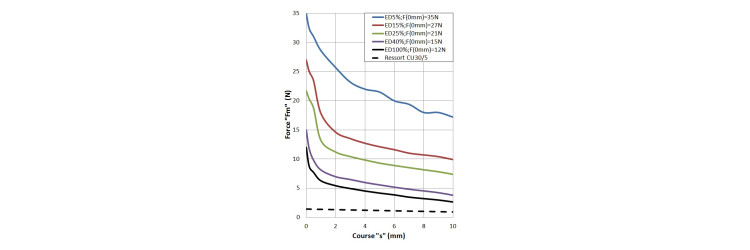

- Force at beginning of stroke
- 7,3 N
- Force at end of stroke
- 21,7 N
- Internal return spring
- yes
- Duration of attraction
- 42 ms
- Recoil time
- 33 ms
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 4 min
- Power
- 30 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 24 V
- IP protection
- IP 40

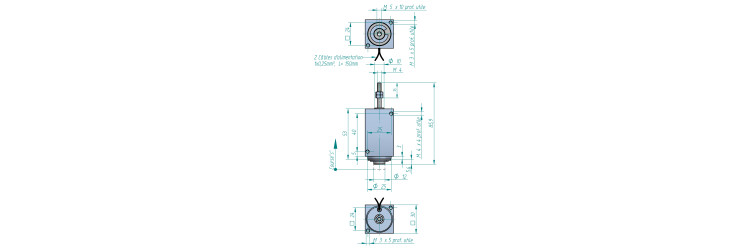

- Body length
- 53 mm
- Width solenoid
- 30 mm
- Coil weight
- 40 g
- Height
- 30 mm
- Total weight
- 290 g
- Product range
- Solenoid for simple operation
