ERC60-10/C - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation
The simple 'Profile Series' solenoids are for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Stroke
- 10 mm
- Force at beginning of stroke
- 43 N
- Force at end of stroke
- 140 N
- Internal return spring
- yes
- Duration of attraction
- 122 ms
- Recoil time
- 81 ms
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 70 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP 00

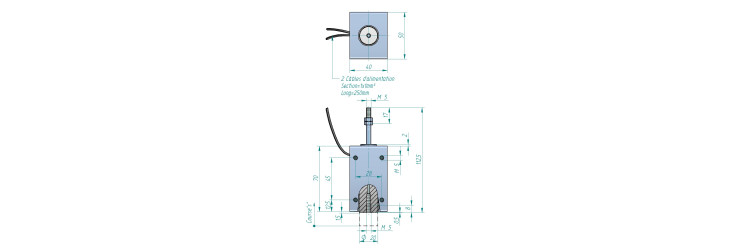

- Body length
- 72 mm
- Width solenoid
- 40 mm
- Coil weight
- 120 g
- Height
- 50 mm
- Total weight
- 660 g
- Product range
- Solenoid for simple operation
