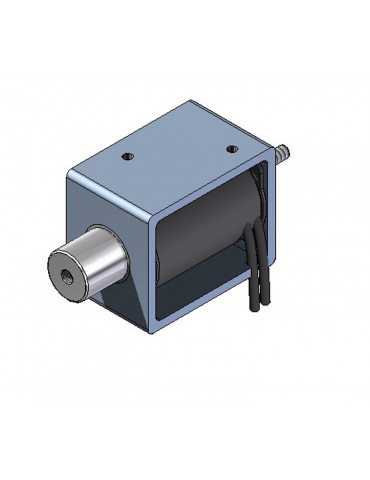

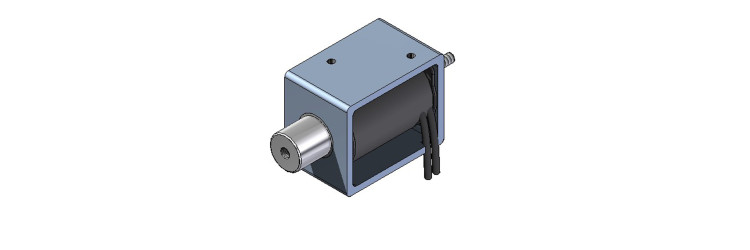

ERC45-50-15/C - DC100% Solenoids
Solenoid for simple operation
Solenoid for simple operation
The simple 'Profile Series' solenoids are for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Stroke
- 15 mm
- Force at beginning of stroke
- 4,5 N
- Force at end of stroke
- 16 N
- Internal return spring
- yes
- Duration of attraction
- 110 ms
- Recoil time
- 68 ms
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 2 min
- Power
- 12 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP 00

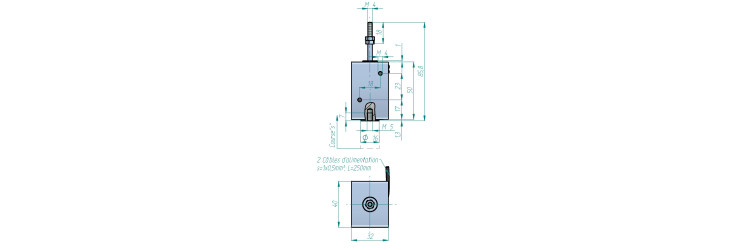

- Body length
- 51 mm
- Width solenoid
- 32 mm
- Coil weight
- 52 g
- Height
- 40 mm
- Total weight
- 297 g
- Product range
- Solenoid for simple operation
