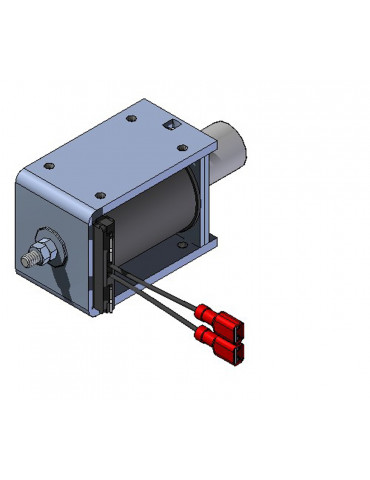

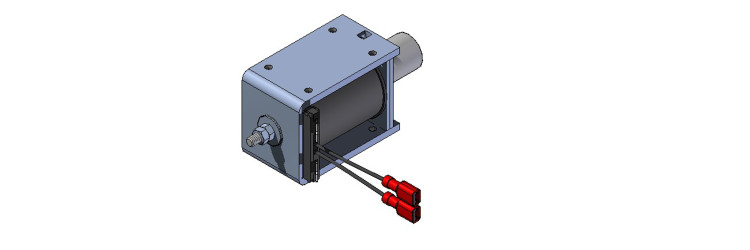

ERD60-05/C - DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation

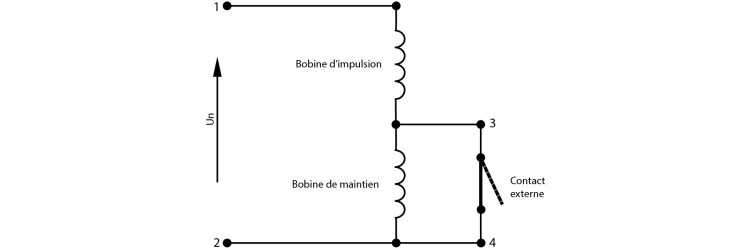

The ERD60-05 / C is equipped with 2 coils. These 2 coils are powered to travel the race and get an increased force when moving the core. As soon as the core has reached the end of the stroke (in abutment), only one holding coil (FM 100%) remains energized thanks to an external contact. This design makes it possible to obtain: a high force at the beginning of the race a significant reduction in the heating up a saving of energy. This principle can be realized on demand for other devices (consult us).
Solenoids
- Stroke
- 25 mm
- Internal return spring
- integrated (3 possibilities of spring-to be specified)
- Duration of attraction
- 118 ms
- Recoil time
- 84 ms
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 3 min
- Power
- 115 W
- Connection
- according to plan and indications
- Insulation class
- Y
- Standard voltages
- 24 ou 48 V
- IP protection
- IP 00
- Body length
- 71,5 mm
- Width solenoid
- 40 mm
- Coil weight
- 117 g
- Height
- 50 mm
- Total weight
- 720 g
- Product range
- Solenoid for simple operation
