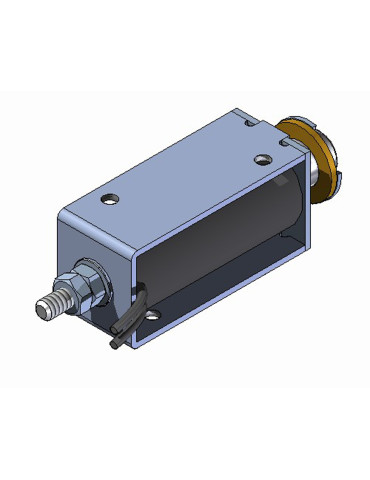

ER15-05/C - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation
The simple solenoid 'Economic Series' are our entry level. They are intended for classic applications. The magnetic circuit, in cut sheet metal, folded and crimped, is closed in the shape of 'D'. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Stroke
- 5 mm

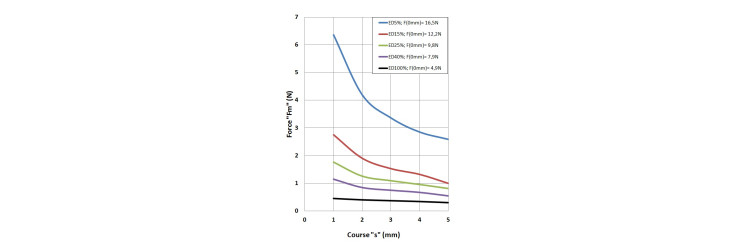

- Force at beginning of stroke
- 2,5 N
- Force at end of stroke
- 16,5 N
- Internal return spring
- no
- Duration of attraction
- 25 ms
- Recoil time
- 25 ms
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 2 min
- Power
- 60 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP 00

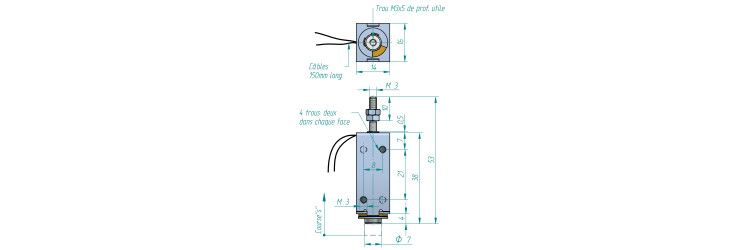

- Body length
- 34 mm
- Width solenoid
- 14 mm
- Coil weight
- 11 g
- Height
- 16 mm
- Total weight
- 39 g
- Product range
- Solenoid for simple operation
