CK13-100TK10/ATK10-2000 Slider beds

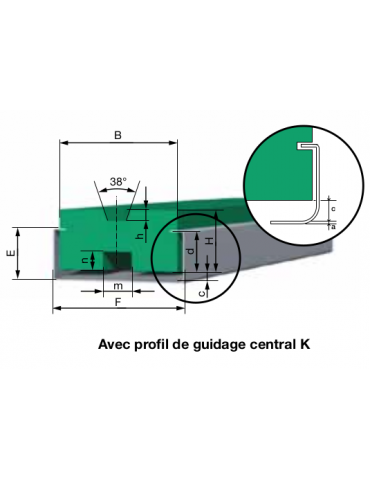

This sliding profile, which is particularly suitable for BRECO® belts, is made of high density green polyethilene HDPE material. The belt is guided by the trapezoidal centering profile.
Slider beds
- Material
- PEHD 500/1000
- Profile / Pitch
- ATK10
- Thickness of profile a
- 2 mm
- Dimension E
- 10 mm
- Dimension F
- 80 mm
- Belt width
- 100 mm
- Dimension b
- 110 mm
- Dimension H
- 20 mm
- Dimension c
- 1 mm
- Dimension d
- 5 mm
- Remarks
- The coefficient of expansion of the HDPE material is important, account must be taken of an elongation of 0.2 mm / m of profile per ° C. For this purpose, the profile can freely expand in its support
- Dimension n
- 6 mm
- Dimension m
- 12 mm
- Guide profile
- K13
