CK6-32TK5/ATK5-2000 Slider beds

Accueil  |  Belts,Pulleys, Accessories  |  Accessories  |  Slider beds  |
CK6-32TK5/ATK5-2000

CK6-32TK5/ATK5-2000


This sliding profile, which is particularly suitable for BRECO® belts, is made of high density green polyethilene HDPE material. The belt is guided by the trapezoidal centering profile.
Slider beds
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

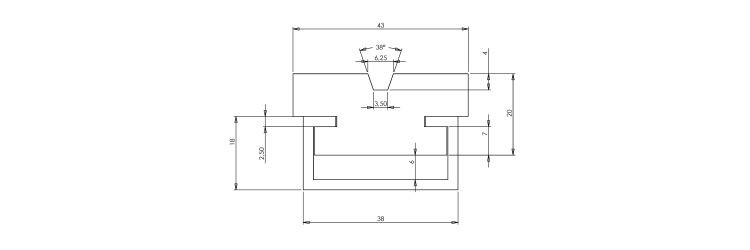

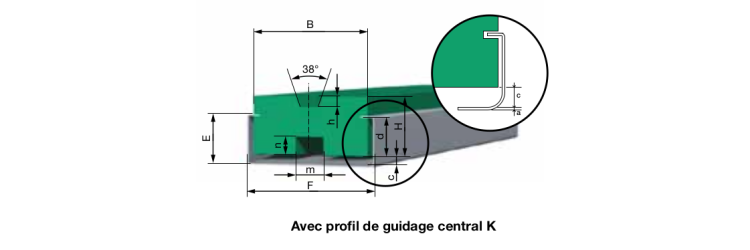

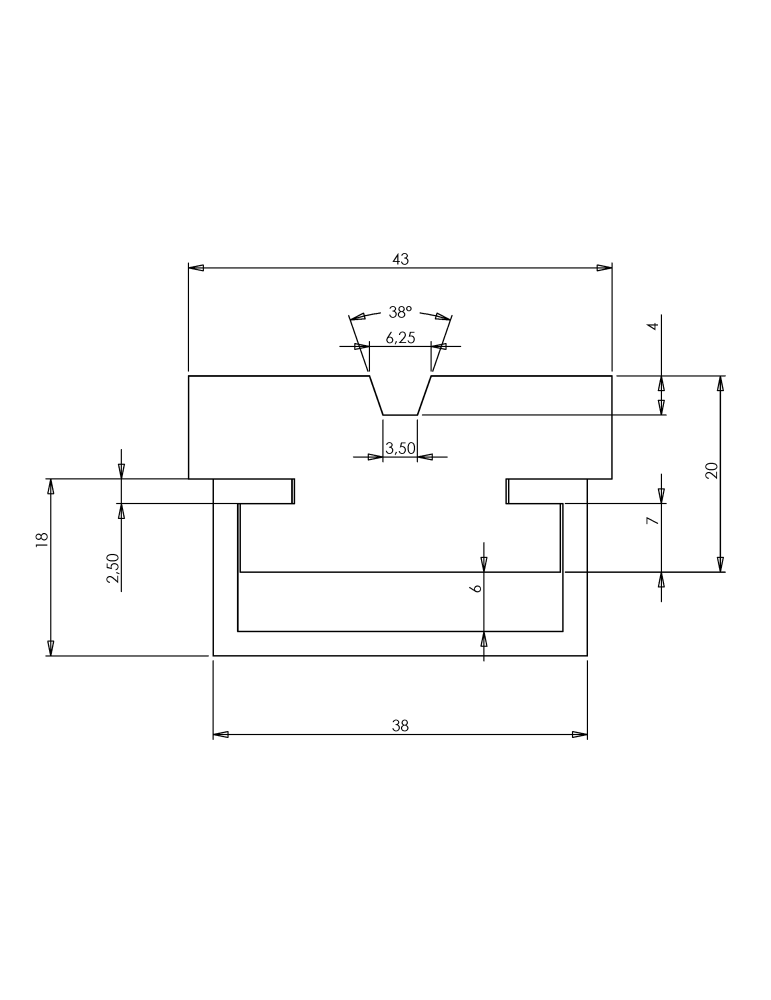

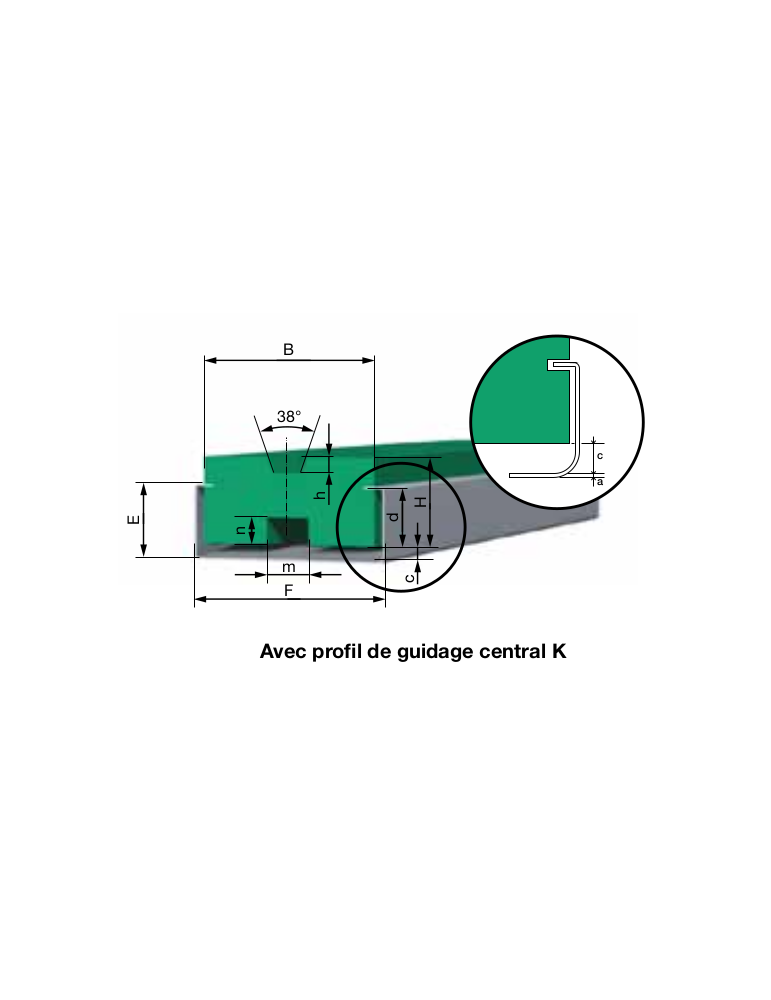

Dimensional plan
Material
PEHD 500/1000
Profile / Pitch
ATK5
Thickness of profile a
2,5 mm
Dimension E
18 mm
Dimension F
38 mm
Belt width
32 mm
Dimension b
43 mm
Dimension H
20 mm
Dimension c
6 mm
Dimension d
7 mm
Remarks
The coefficient of expansion of the HDPE material is important, account must be taken of an elongation of 0.2 mm / m of profile per ° C. For this purpose, the profile can freely expand in its support
Guide profile
K6
