CB100T20/AT20-2000

This sliding profile, which is particularly suitable for BRECO® belts, is made of high density green polyethilene HDPE material. The belt is guidedcan be guided by slider profiles with edges -version CB- or by a central trapezoidal groove-version CK.
Slider beds
Grayed out functions require you to be logged in to your account
login to my account

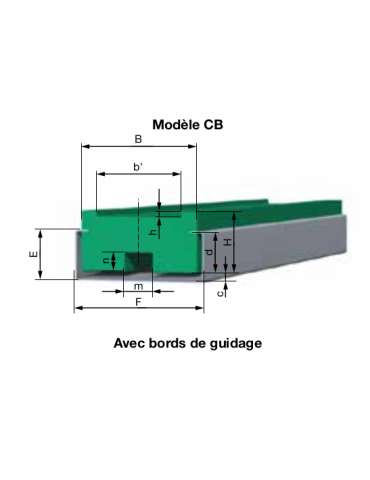

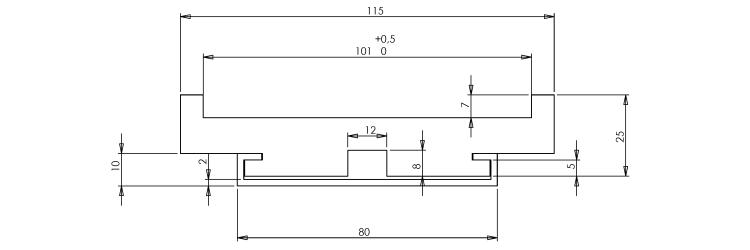

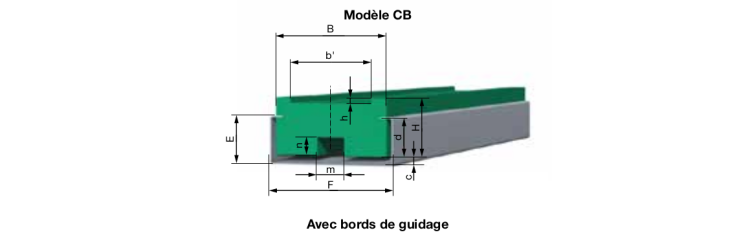

Dimensional plan
Material
PEHD 500/1000
Profile / Pitch
AT20
Thickness of profile a
2 mm
Dimension E
10 mm
Dimension F
80 mm
Belt width
100 mm
Dimension b
115 mm
Dimension H
25 mm
Dimension c
1 mm
Dimension d
5 mm
Remarks
The coefficient of expansion of the HDPE material is important, account must be taken of an elongation of 0.2 mm / m of profile per ° C. For this purpose, the profile can freely expand in its support
Dimension n
8 mm
Dimension m
12 mm
