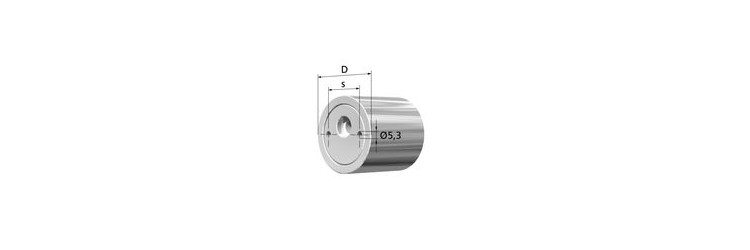

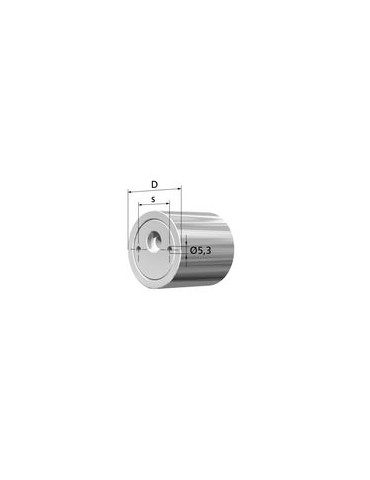

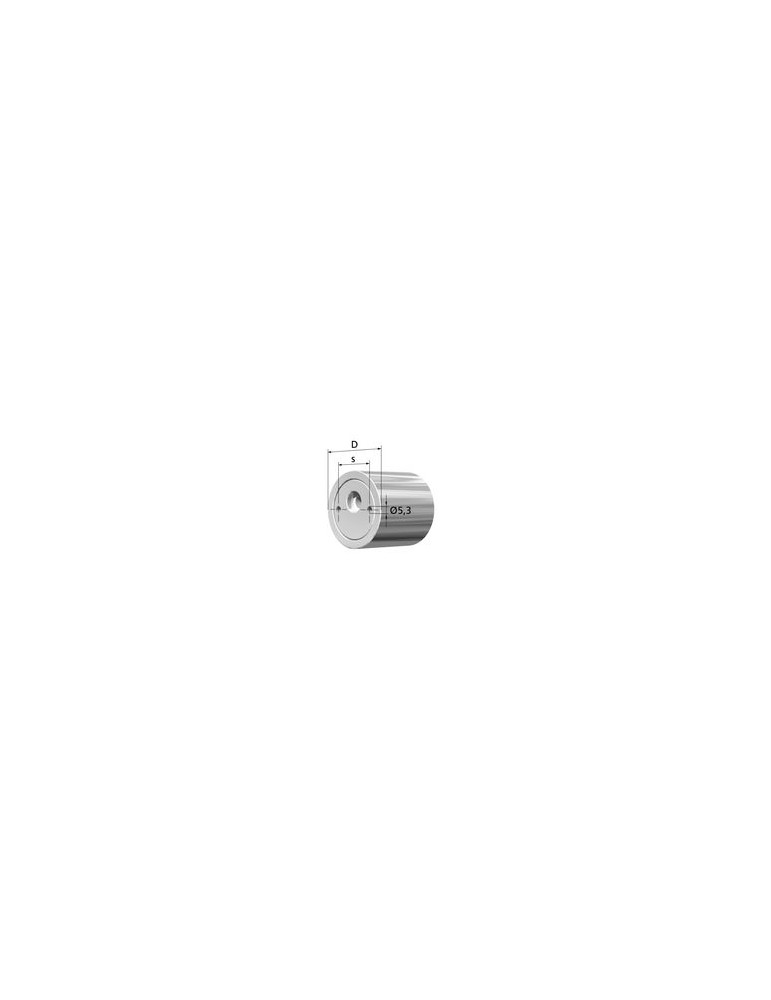

M110/120-0

M110/120-0


Rollers with eccentric shaft

The M Series Strong Smooth Eccentric Roller is designed for front mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

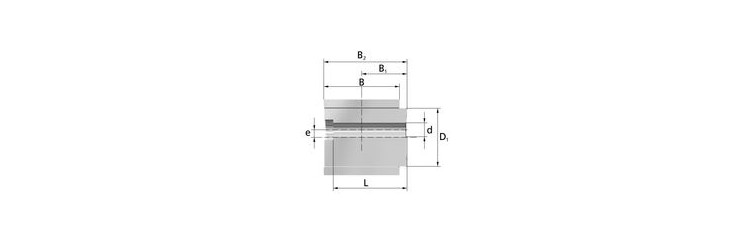

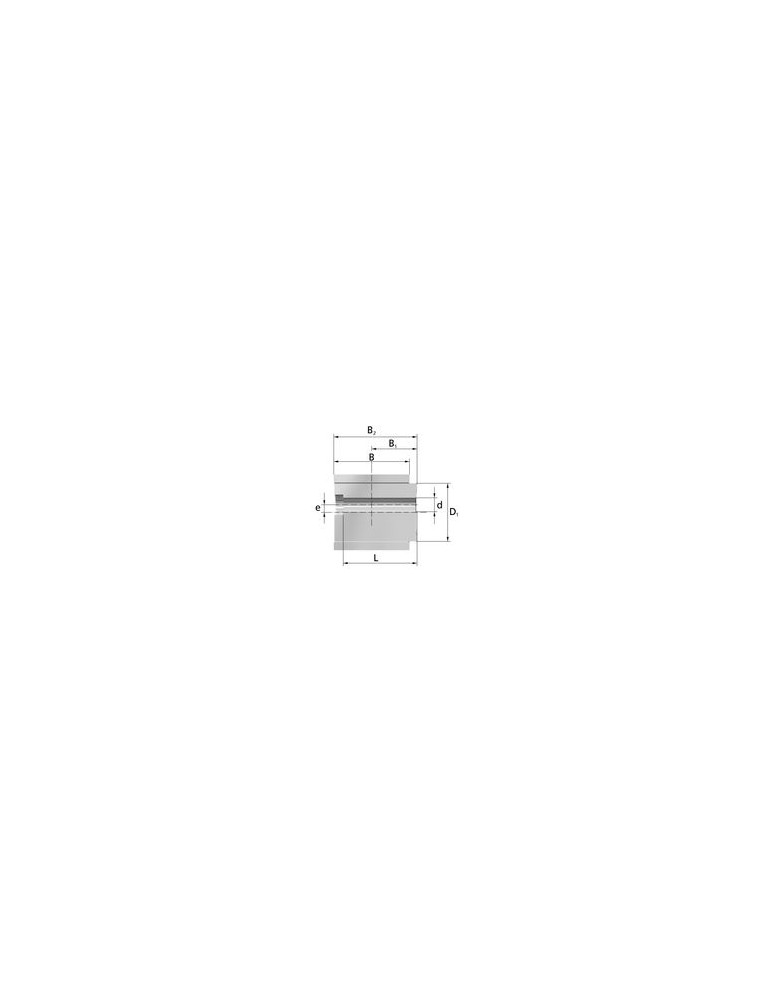

Dimensional plan
Belt maximum width
100 mm
Dynamic load
51000 N
Static load
36600 N
Max. speed
6700 tr/min
Profile / Pitch
Lisse
Dimension dB
17 mm
Dimension SW
70 mm
Dimension K
107,5 mm
Dimension S
70 mm
Dimension B
110 mm
Dimension D
120, 17 mm
Dimension B2
120 mm
Dimension E
17 mm
Dimension D1
94 mm
Dimension B1
60 mm
Product range
Rollers with eccentric shaft
Type
M
Material
Al
