M110/60-0 Rollers

Rollers with eccentric shaft

Accueil  |  Belts,Pulleys, Accessories  |  Accessories  |  Rollers  |

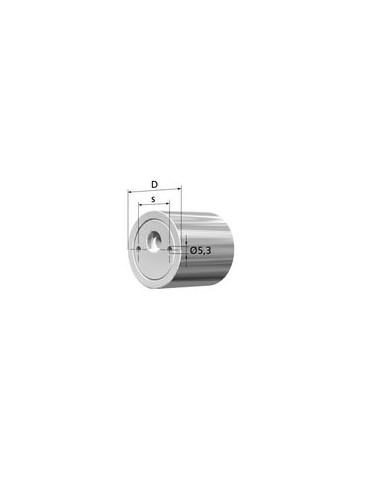

M110/60-0

M110/60-0


Rollers with eccentric shaft

The M Series Strong Smooth Eccentric Roller is designed for front mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Dimensional plan
Belt maximum width
100 mm
Dynamic load
19300 N
Static load
11200 N
Max. speed
15000 tr/min
Profile / Pitch
Lisse
Dimension dB
13 mm
Dimension SW
35 mm
Dimension K
106,5 mm
Dimension S
35 mm
Dimension B
110 mm
Dimension D
60, 13 mm
Dimension B2
116 mm
Dimension E
5 mm
Dimension D1
46 mm
Dimension B1
61 mm
Product range
Rollers with eccentric shaft
Type
M
Material
Al
