B/E0Al64BATK10/24-0 Rollers
Toothed tension rollers
Toothed tension rollers
The Type B toothed eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 50 mm
- Dynamic load
- 19300 N
- Static load
- 13100 N
- Max. speed
- 15000 tr/min
- Profile / Pitch
- BATK10
- Thread G
- M12

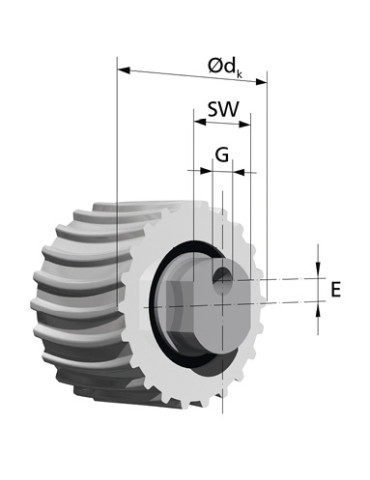

- Dimension T
- 20 mm
- Dimension SW
- 27 mm
- Dimension dk
- 74,57 mm
- Number of teeth
- 24
- Dimension B
- 64 mm
- Dimension B2
- 74 mm
- Dimension E
- 5 mm
- Dimension D1
- 30 mm
- Product range
- Toothed tension rollers
- Type
- B/E0
- Material
- Al
