B/E0Al40BAT10/20-0 Rollers
Toothed tension rollers
Toothed tension rollers
The Type B toothed eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 32 mm
- Dynamic load
- 19300 N
- Static load
- 13100 N
- Max. speed
- 15000 tr/min
- Profile / Pitch
- BAT10
- Thread G
- M12
- Dimension T
- 20 mm

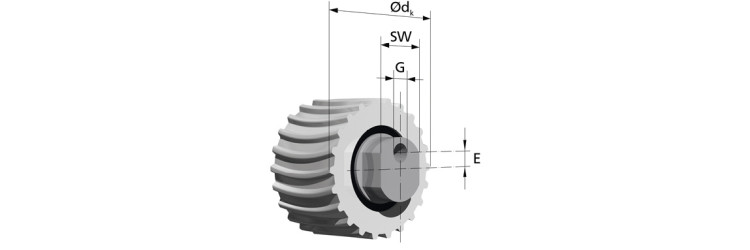

- Dimension SW
- 27 mm
- Dimension dk
- 61,84 mm
- Number of teeth
- 20

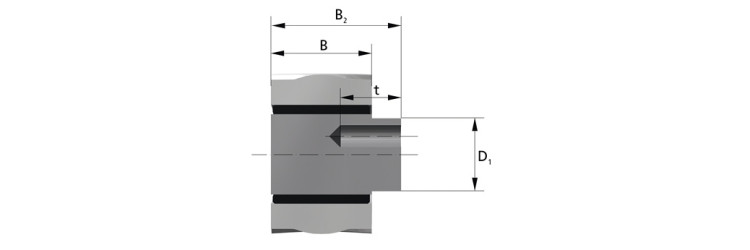

- Dimension B
- 40 mm
- Dimension B2
- 50 mm
- Dimension E
- 5 mm
- Dimension D1
- 30 mm
- Product range
- Toothed tension rollers
- Type
- B/E0
- Material
- Al
