B/F2Al117/180-2 Rollers
Fixed rollers
Fixed rollers
The Type B fixed-axis smooth roller is designed for rear-mount mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 100 mm
- Number of flanges
- 2
- Dynamic load
- 106000 N
- Static load
- 76000 N
- Max. speed
- 5000 tr/min
- Profile / Pitch
- Lisse

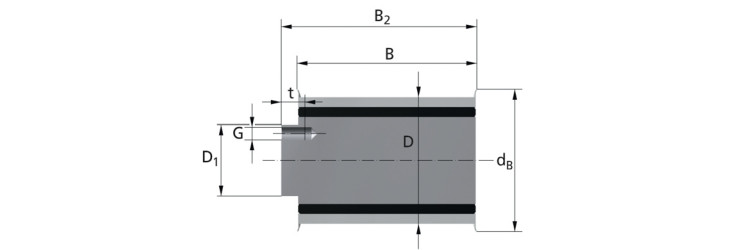

- Dimension dB
- 204 mm
- Thread G
- M16 (3×)
- Dimension T
- 25 mm

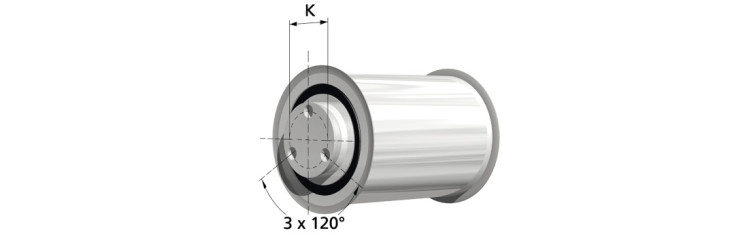

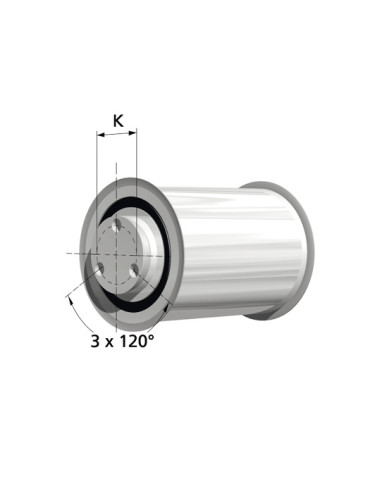

- Dimension K
- 80 mm
- Dimension B
- 117 mm
- Dimension D
- 180 mm
- Dimension B2
- 131 mm
- Dimension D1
- 106 mm
- Product range
- Fixed rollers
- Type
- B/F2
- Material
- Al
