B/E0Al90/150-0 Rollers
Rollers with eccentric shaft
Rollers with eccentric shaft
Type B smooth eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 75 mm
- Dynamic load
- 48000 N
- Static load
- 38000 N
- Max. speed
- 5000 tr/min
- Profile / Pitch
- Lisse

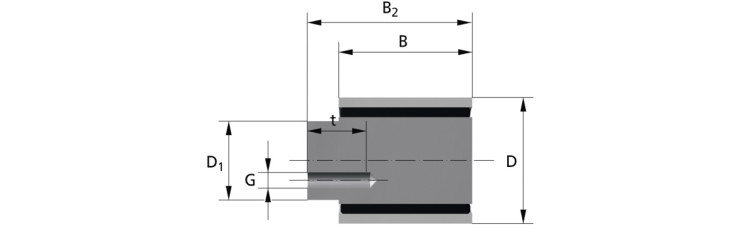

- Dimension dB
- - mm
- Thread G
- M20
- Dimension T
- 32 mm

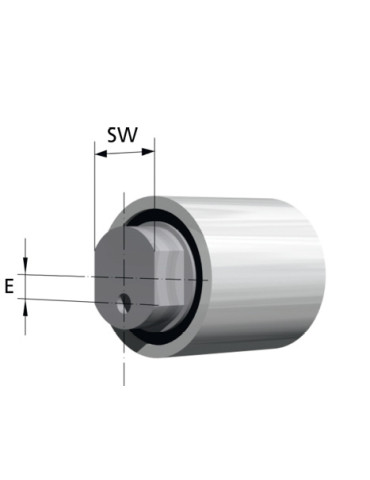

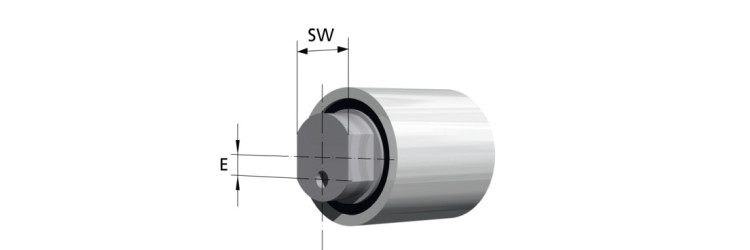

- Dimension SW
- 36 mm
- Dimension B
- 90 mm
- Dimension D
- 150 mm
- Dimension B2
- 110 mm
- Dimension E
- 5 mm
- Dimension D1
- 45 mm
- Product range
- Rollers with eccentric shaft
- Type
- B/E0
- Material
- Al
