B/F2Al114/80-2 Rollers
Fixed rollers
Fixed rollers
The Type B fixed-axis smooth roller is designed for rear-mount mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 100 mm
- Number of flanges
- 2
- Dynamic load
- 19300 N
- Static load
- 13100 N
- Max. speed
- 5000 tr/min
- Profile / Pitch
- Lisse
- Dimension dB
- 91 mm
- Thread G
- M8 (3×)
- Dimension T
- 15 mm

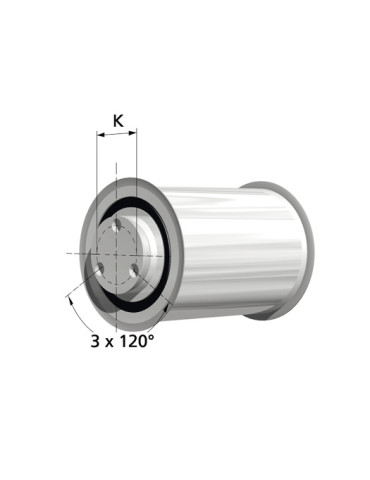

- Dimension K
- 34 mm
- Dimension B
- 114 mm
- Dimension D
- 80 mm
- Dimension B2
- 124 mm
- Dimension D1
- 45 mm
- Product range
- Fixed rollers
- Type
- B/F2
- Material
- Al
