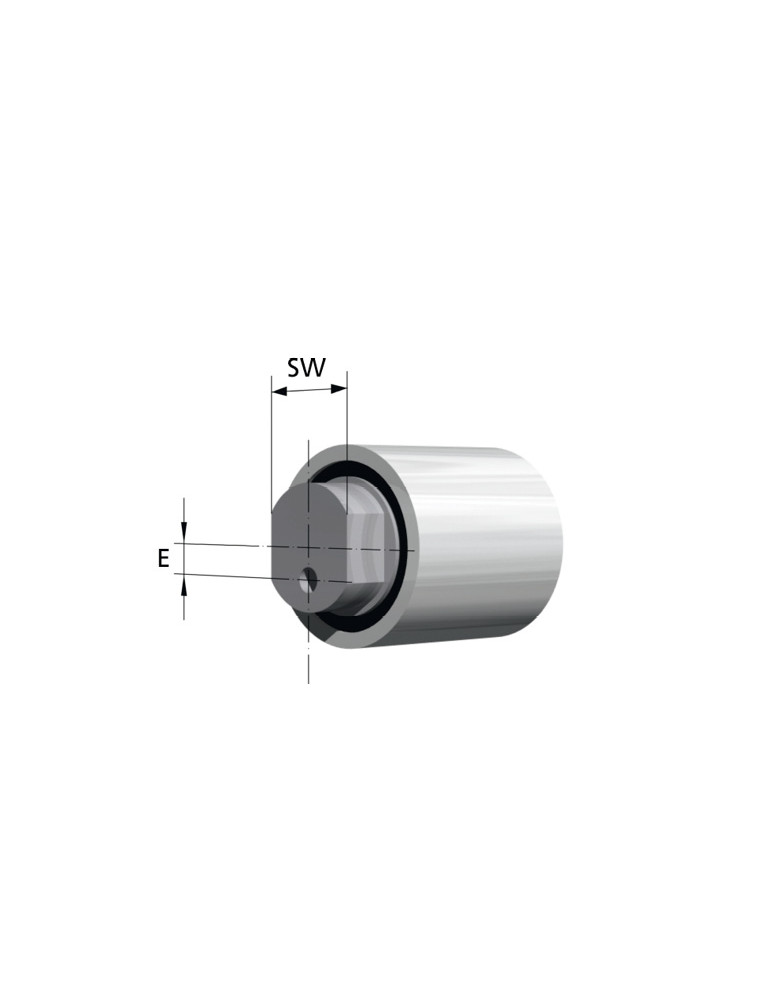

B/E0Al34/32-0 Rollers
Rollers with eccentric shaft
Rollers with eccentric shaft
Type B smooth eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 25 mm
- Dynamic load
- 7950 N
- Static load
- 3920 N
- Max. speed
- 10000 tr/min
- Profile / Pitch
- Lisse

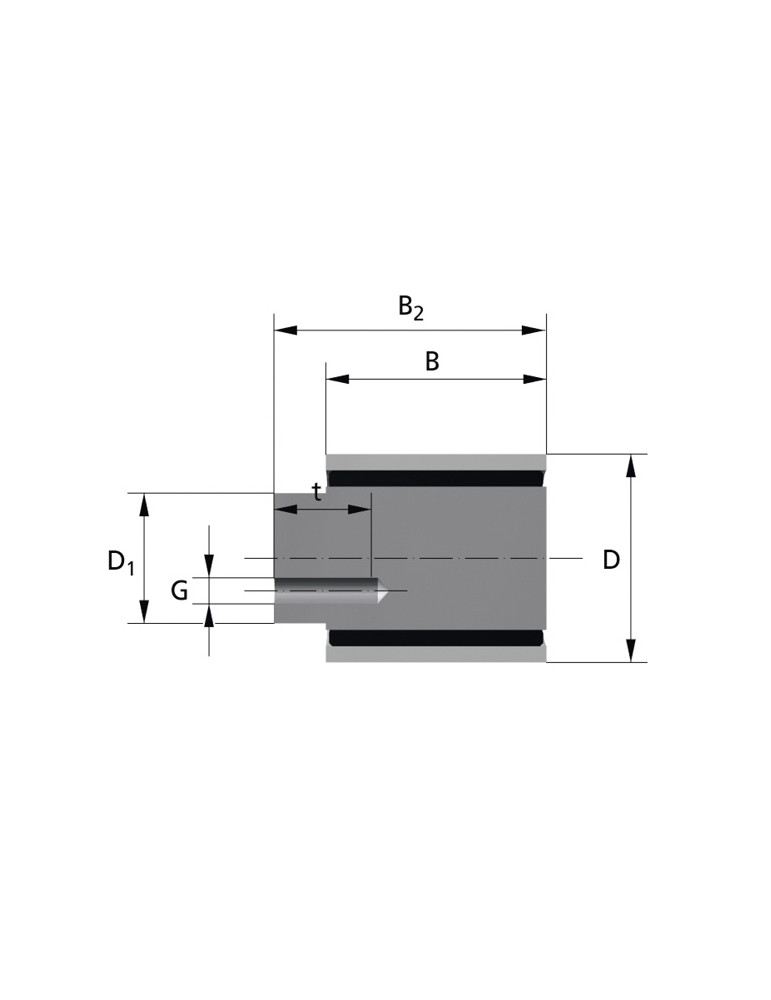

- Dimension dB
- - mm
- Thread G
- M6
- Dimension T
- 15 mm
- Dimension SW
- 17 mm
- Dimension B
- 34 mm
- Dimension D
- 32 mm
- Dimension B2
- 42 mm
- Dimension E
- 5 mm
- Dimension D1
- 20 mm
- Product range
- Rollers with eccentric shaft
- Type
- B/E0
- Material
- Al
