42 AT8 84 Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 84
- Profile / Pitch
- AT8
- Profile
- AT
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- No

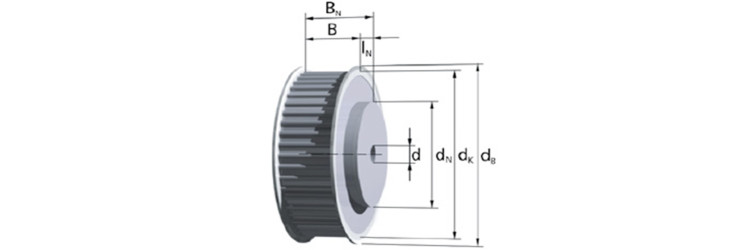

- Width without shoulder B
- 32 mm
- Width with shoulder Bn
- 42 mm
- Tooth tip diameter dk
- 214,08 mm
- Shoulder diameter dn
- 116 mm
- Minimum stock bore diameter dv
- 22 mm
- Outside diameter of flange db
- 220 mm
- Belt width b
- 25 mm
- Pitch
- 8 mm
