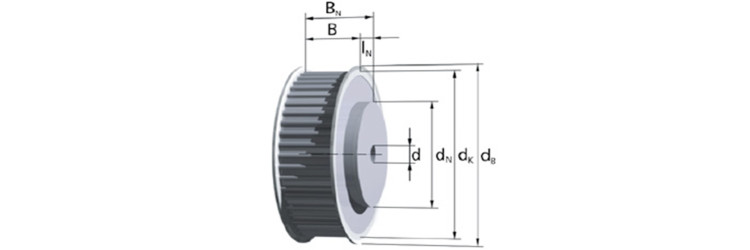

120 AT8 65 Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 65
- Profile / Pitch
- AT8
- Profile
- AT
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- No
- Width without shoulder B
- 110 mm
- Width with shoulder Bn
- 120 mm
- Tooth tip diameter dk
- 163,46 mm
- Shoulder diameter dn
- 95 mm
- Minimum stock bore diameter dv
- 16 mm
- Outside diameter of flange db
- 169 mm
- Belt width b
- 100 mm
- Pitch
- 8 mm
