95 AT8 62

95 AT8 62


Pulleys
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Standard material
AL 2017A
Number of teeth Z
62
Profile / Pitch
AT8
Profile
AT
Options
Additional information available in the technical explanations
On stock, ex factory France
No

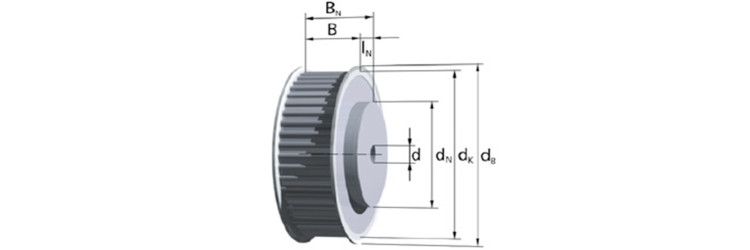

Width without shoulder B
85 mm
Width with shoulder Bn
95 mm
Tooth tip diameter dk
155,82 mm
Shoulder diameter dn
95 mm
Minimum stock bore diameter dv
16 mm
Outside diameter of flange db
160 mm
Belt width b
75 mm
Pitch
8 mm
