140 HTD14 90

140 HTD14 90

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

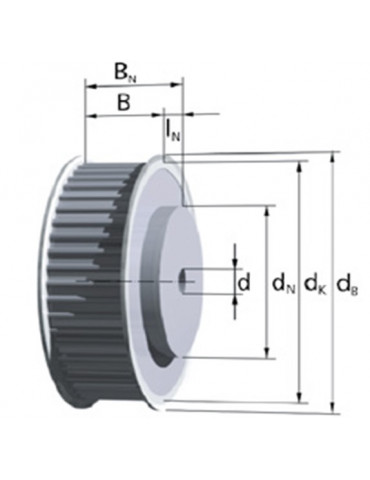

Technical characteristics Options Masses and dimensions

Standard material: AL 2017A

Number of teeth Z: 90

Profile / Pitch: HTD14

Profile: HTD

Options: Additional information available in the technical explanations

On stock, ex factory France: No

Width without shoulder B: 130 mm

Width with shoulder Bn: 140 mm

Tooth tip diameter dk: 398,28 mm

Outside diameter of flange db: 408 mm

Belt width b: 120 mm

Pitch: 14 mm
