33 AT10 23

33 AT10 23


Pulleys
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Standard material
AL 2017A
Number of teeth Z
23
Profile / Pitch
AT10
Profile
AT
Options
Additional information available in the technical explanations
On stock, ex factory France
No

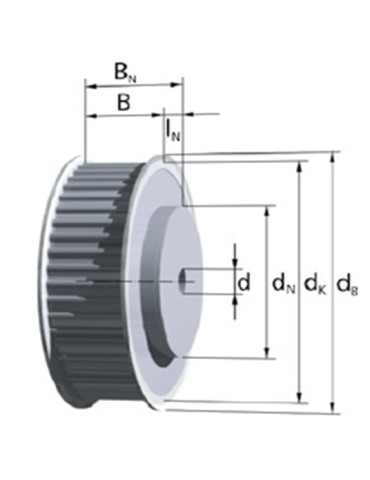

Width without shoulder B
23 mm
Width with shoulder Bn
33 mm
Tooth tip diameter dk
71,39 mm
Shoulder diameter dn
50 mm
Minimum stock bore diameter dv
12 mm
Outside diameter of flange db
76 mm
Belt width b
16 mm
Pitch
10 mm
