70 AT10 17 Pulleys
Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 17
- Profile / Pitch
- AT10
- Profile
- AT
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- No

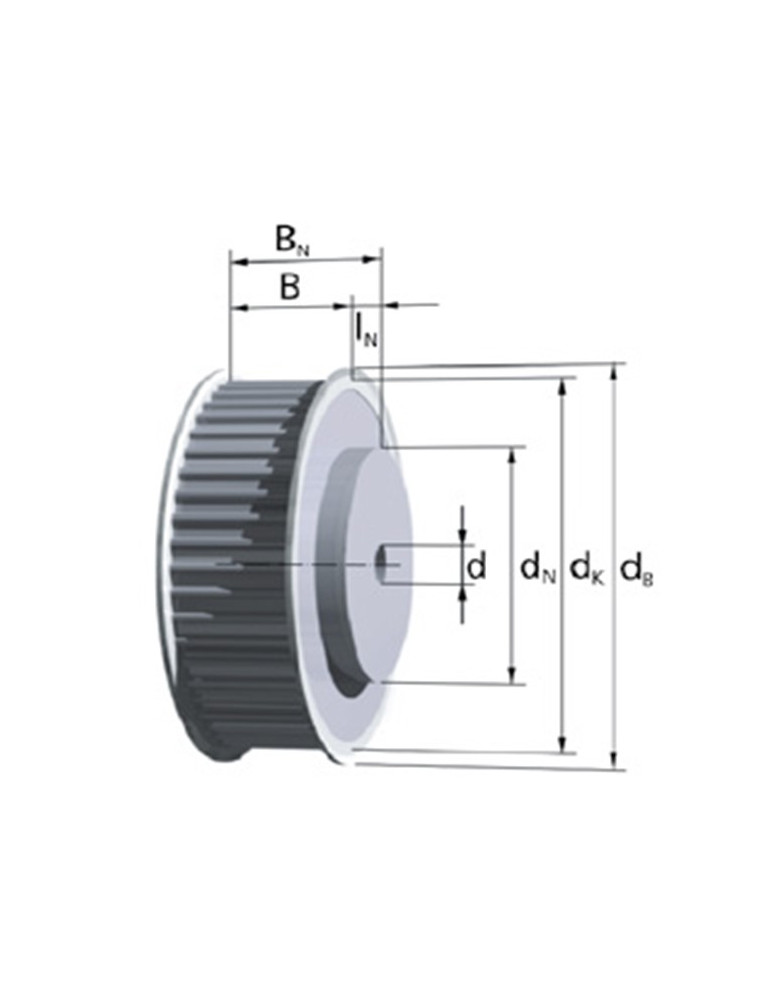

- Width without shoulder B
- 60 mm
- Width with shoulder Bn
- 70 mm
- Tooth tip diameter dk
- 52,29 mm
- Shoulder diameter dn
- 40 mm
- Minimum stock bore diameter dv
- 8 mm
- Outside diameter of flange db
- 58 mm
- Belt width b
- 50 mm
- Pitch
- 10 mm
