38 AT5 48 Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 48
- Profile / Pitch
- AT5
- Profile
- AT
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- Yes

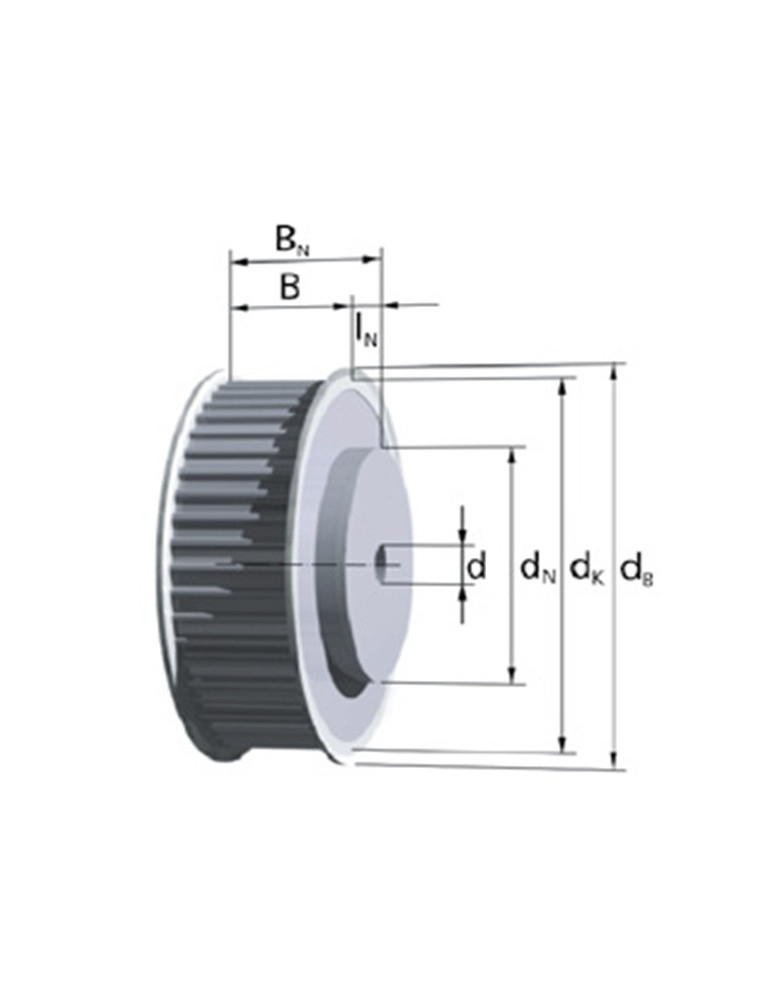

- Width without shoulder B
- 32 mm
- Width with shoulder Bn
- 38 mm
- Tooth tip diameter dk
- 75,17 mm
- Shoulder diameter dn
- 50 mm
- Minimum stock bore diameter dv
- 8 mm
- Outside diameter of flange db
- 80 mm
- Belt width b
- 25 mm
- Pitch
- 5 mm
