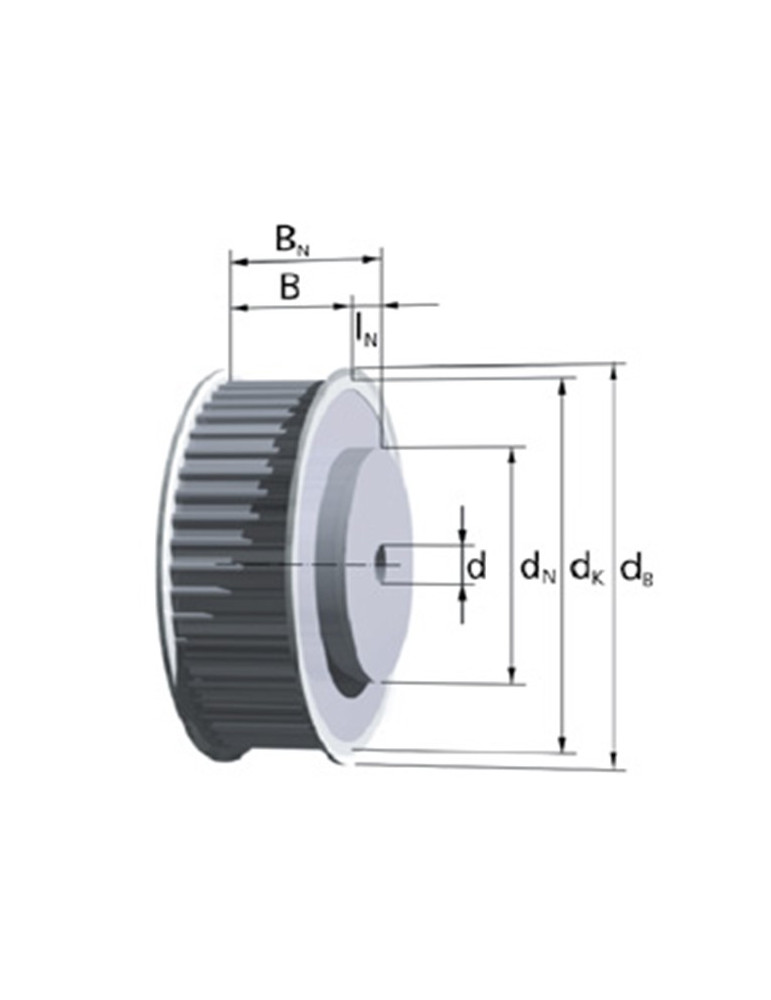

22 AT5 36 Pulleys
22 AT5 36: Binder Magnetic pulleys are manufactured according to the MULCO standard to work optimally with our belts. Our standard pulleys are made of RoHS-compliant 2017 aluminum. We strongly recommend a high-strength AlHR (7075) aluminum alloy for high-power applications.
Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 36
- Profile / Pitch
- AT5
- Profile
- AT

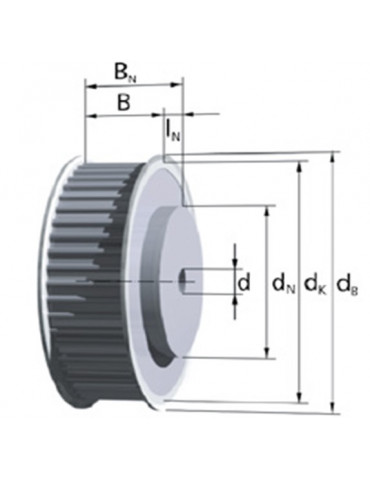

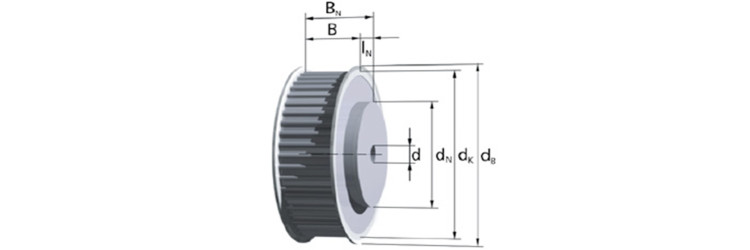

- Width without shoulder B
- 16 mm
- Width with shoulder Bn
- 22 mm
- Tooth tip diameter dk
- 56,08 mm
- Shoulder diameter dn
- 38 mm
- Minimum stock bore diameter dv
- 8 mm
- Outside diameter of flange db
- 61 mm
- Belt width b
- 10 mm
- Pitch
- 5 mm
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- Yes
