BINDER premium 50 AT15 MOVE

BINDER premium 50 AT15 MOVE


BRECOFLEXmove ® belt

Power belts
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

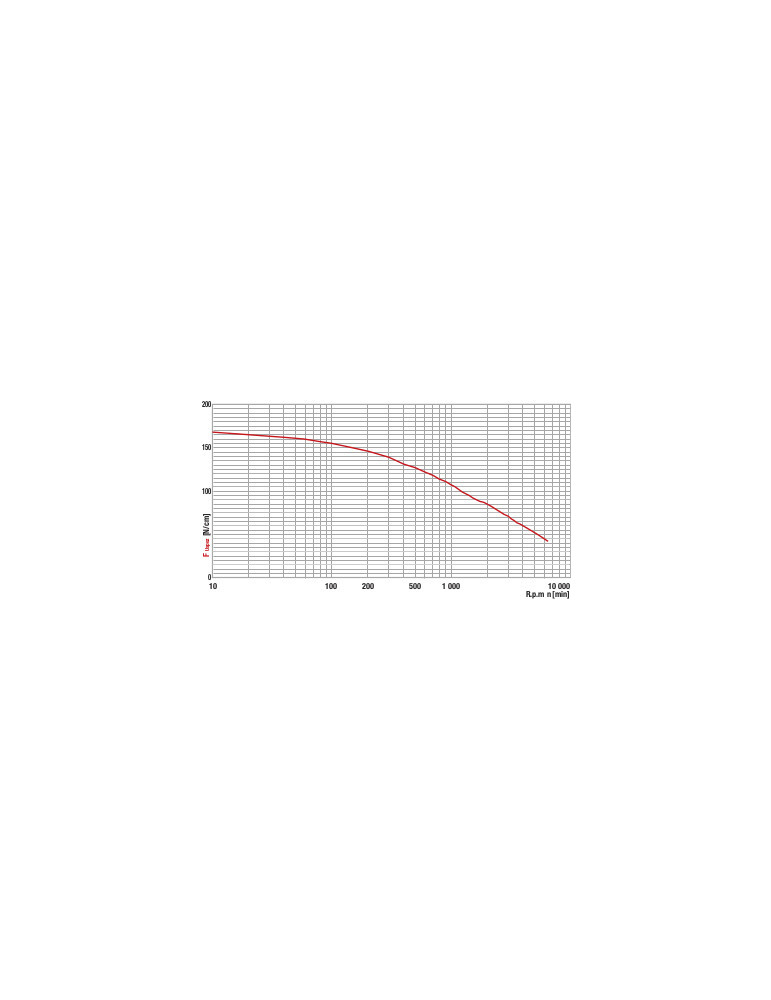

Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
BRECOFLEXmove ® belt
Applications
High performance application

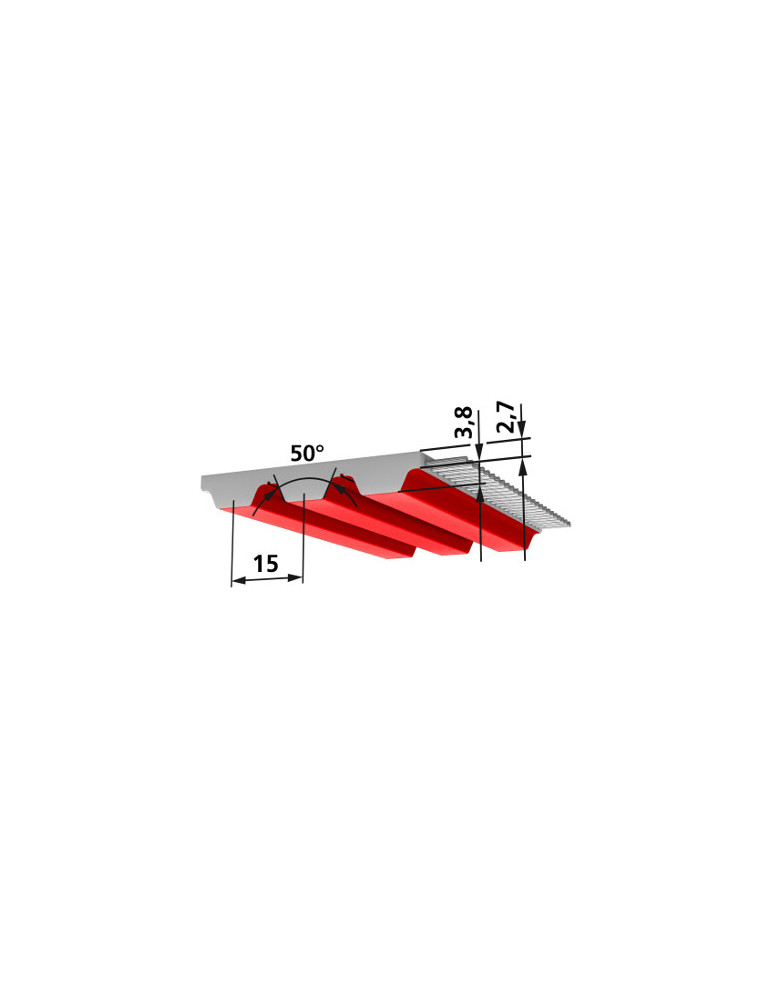

Profile / Pitch
AT15
Profile
AT
Pitch
15
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
Winding
wire
P max
≤250 kW
Steel tension member permissible force FN
17550 N
N max
8000 tr/min
V max
48 m/s
Standard belt lengths
From 1500 to 30495 mm
Belt width
75 mm
Weight
0,473 kg/m
Z min single bending standard cable
20
Ø min Flexion simple câble standard
95 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
