BINDER premium 25 AT15 MOVE

BINDER premium 25 AT15 MOVE

BINDER premium 32 AT15 MOVE

BINDER premium 50 AT15 MOVE

BRECOFLEXmove ® belt

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

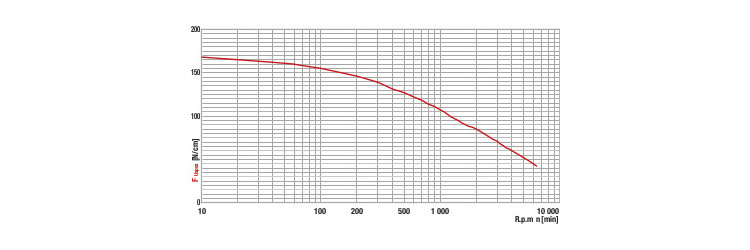

Tangential force transmissible by the teeth

Range: BINDERpremium

Product range power belts: BRECOFLEXmove ® belt

Applications: High performance application

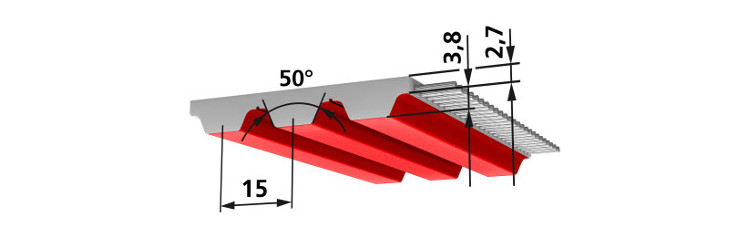

Profile / Pitch: AT15

Profile: AT

Pitch: 15

PU Material steel tension member: White TPU ST5

Shore hardness steel tension member belt: 92 ShA

Temperature range of steel tension member belt: 0 à 80 °C

Winding: wire

P max: ≤250 kW

Steel tension member permissible force FN: 11050 N

N max: 8000 tr/min

V max: 48 m/s

Standard belt lengths: From 1500 to 30495 mm

Belt width: 50 mm

Weight: 0,303 kg/m

Z min single bending standard cable: 20

Ø min Flexion simple câble standard: 95 mm

Z min alternating bending standard cable: 25

Ø min alternée simple câble standard: 120 mm
