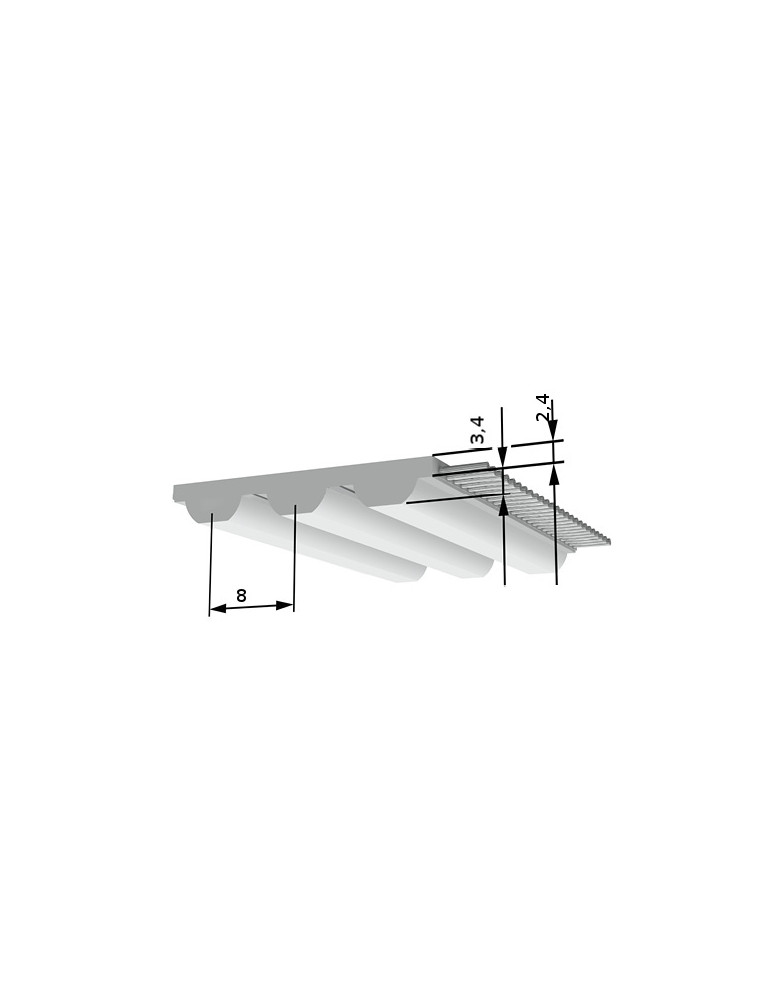

BINDER access 12 CTD C8M ARAMIDE

BINDER access 12 CTD C8M ARAMIDE

BINDER access 21 CTD C8M ARAMIDE

BINDER premium 32 AT15 MOVE

CONTI® synchrochain aramid belt

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Range: BINDERaccess

Product range power belts: CONTI® synchrochain aramid belt

Applications: High power application

Profile / Pitch: CTD C8

Profile: CTD

Pitch: 8

PU Material steel tension member: DNSU 9590

Shore hardness steel tension member belt: 95 ShA

Temperature range of steel tension member belt: -35 à 100 °C

Aramid tension member permissible force FN: 1150 N

N max: 5500 tr/min

Standard belt lengths: 640, 720, 800, 896, 920, 960, 1000, 1040, 1120, 1200, 1224, 1280, 1440, 1600, 1760, 1792, 2000, 2400, 2520, 2840, 3200, 3600, 4000 mm

Belt width: 12 mm

Weight: 0,051 kg/m

Number of teeth: 80, 90, 100, 112, 115, 120, 125, 130, 140, 150, 153, 160, 180, 200, 220, 224, 250, 300, 315, 355, 400, 450, 500

Z min single bending standard cable: 22

Ø min Flexion simple câble standard: 56 mm
