BINDER access 50 T20 SYN Power belts

Synchroflex® standard belt

Accueil | Belts,Pulleys, Accessories | Belts | Power belts |
BINDER access 50 T20 SYN

BINDER access 50 T20 SYN

BINDER access 32 T20 SYN

BINDER access 75 T20 SYN

Synchroflex® standard belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

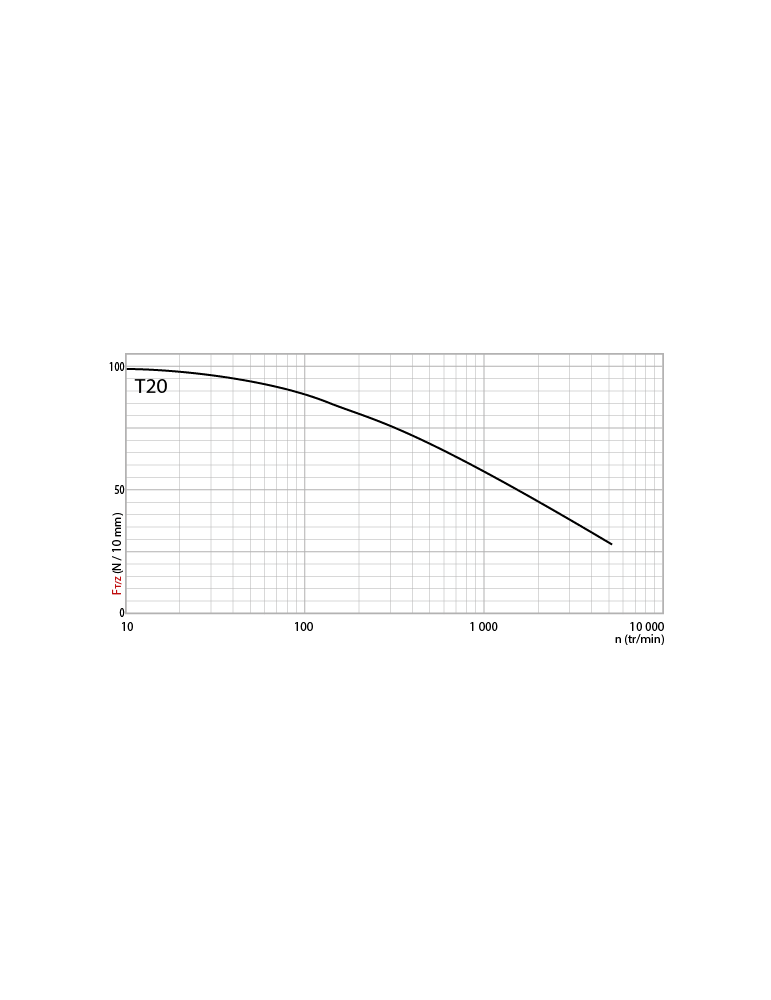

Tangential force transmissible by the teeth

Range: BINDERaccess

Product range power belts: Synchroflex® standard belt

Applications: Simple application

Profile / Pitch: T20

Profile: T

Pitch: 20

PU Material steel tension member: DEDU 8600

Shore hardness steel tension member belt: 88 ShA

Temperature range of steel tension member belt: -20 à 80 °C

Winding: wire

P max: ≤100 kW

Steel tension member permissible force FN: 7750 N

Stainless steel member permissible force FN: 5580 N

N max: 6500 tr/min

V max: 40 m/s

Standard belt lengths: 1260, 2360, 1460, 1780, 1880, 3100, 2600, 3620 mm

Belt width: 50 mm

Weight: 0,368 kg/m

Number of teeth: 130, 89, 73, 63, 118, 181, 94, 155

Z min single bending standard cable: 15

Ø min Flexion simple câble standard: 120 mm

Z min alternating bending standard cable: 25

Ø min alternée simple câble standard: 120 mm
