BINDER access 6 T2,5 SYN

BINDER access 6 T2,5 SYN

BINDER access 4 T2,5 SYN

BINDER access 8 T2,5 SYN

Synchroflex® micromechanical belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERaccess

Product range power belts: Synchroflex® micromechanical belt

Applications: Micromechanical application

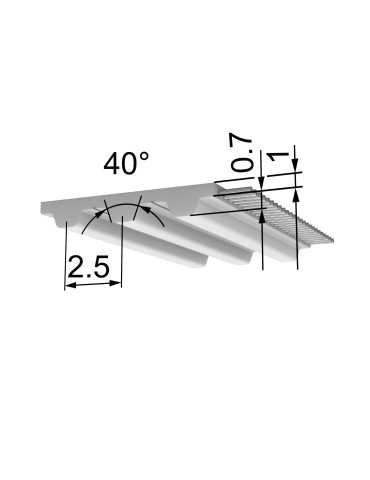

Profile / Pitch: T2,5

Profile: T

Pitch: 2

PU Material steel tension member: DEDU 8600

Shore hardness steel tension member belt: 88 ShA

Temperature range of steel tension member belt: -20 à 80 °C

Winding: wire

P max: ≤0,5 kW

Steel tension member permissible force FN: 65 N

N max: 20000 tr/min

V max: 80 m/s

Standard belt lengths: 200, 225, 265, 285, 330, 500, 600, 620, 950, 480, 160, 780, 1350, 1300, 305, 420, 180, 120, 145, 177,5, 182,5, 230, 245, 250, 290, 317,5, 380, 395, 540, 650, 1475 mm

Belt width: 6 mm

Weight: 0,009 kg/m

Number of teeth: 80, 90, 100, 200, 71, 92, 127, 168, 240, 98, 192, 380, 72, 132, 106, 116, 260, 73, 122, 158, 216, 58, 48, 64, 14, 152, 248, 312, 520, 540, 590

Z min single bending standard cable: 10

Ø min Flexion simple câble standard: 15 mm

Z min alternating bending standard cable: 18

Ø min alternée simple câble standard: 15 mm
