BINDER premium 16 AT10 GENIII Power belts
Synchroflex® GEN III belt
Synchroflex® GEN III belt
Power belts
- Range
- BINDERpremium
- Product range power belts
- Synchroflex® GEN III belt
- Applications
- Precision application

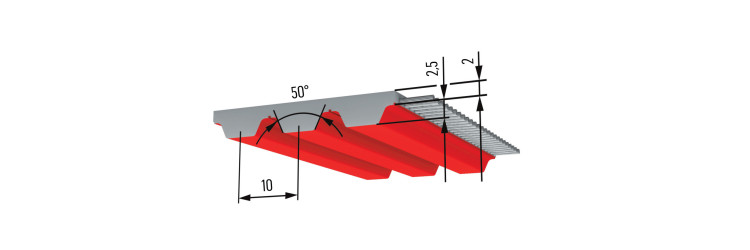

- Profile / Pitch
- AT10
- Profile
- AT
- Pitch
- 10
- PU Material steel tension member
- DNHU 9333
- Shore hardness steel tension member belt
- 93 ShA
- Temperature range of steel tension member belt
- -20 à 100 °C
- Winding
- wire
- P max
- ≤ 87 kW
- Steel tension member permissible force FN
- 3000 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Standard belt lengths
- 800, 920, 960, 1000, 1200, 1280, 1600, 1400, 460, 500, 600, 700, 840, 890, 1050, 1500, 880, 1360, 1800, 780, 1100, 1700, 1900, 980, 1010, 1080, 1150, 1210, 1250, 1320, 1350, 1300, 610, 660, 440, 46, 570, 580, 730, 1480, 1720, 1860, 1940 mm
- Belt width
- 16 mm
- Weight
- 0,117 kg/m
- Number of teeth
- 80, 100, 115, 120, 125, 130, 140, 150, 160, 180, 135, 170, 190, 57, 60, 66, 70, 92, 105, 110, 148, 172, 44, 78, 98, 50, 84, 88, 89, 96, 101, 108, 121, 132, 186, 136, 56, 61, 73, 128, 46, 58, 194
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 50 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 120 mm
- Z min single bending E cable
- 12
- Ø min Flexion simple câble E
- 50 mm
- Ø min alternée simple câble E
- 80 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 80 mm
- Z min alternating bending stainless steel cable
- 40
- Ø min alternée simple câble Inox
- 120 mm
