BINDER premium 25 AT3 GENIII Power belts
Synchroflex® GEN III belt
Synchroflex® GEN III belt
Power belts
- Range
- BINDERpremium
- Product range power belts
- Synchroflex® GEN III belt
- Applications
- High performance application

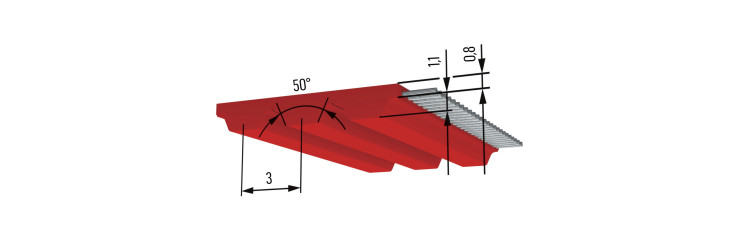

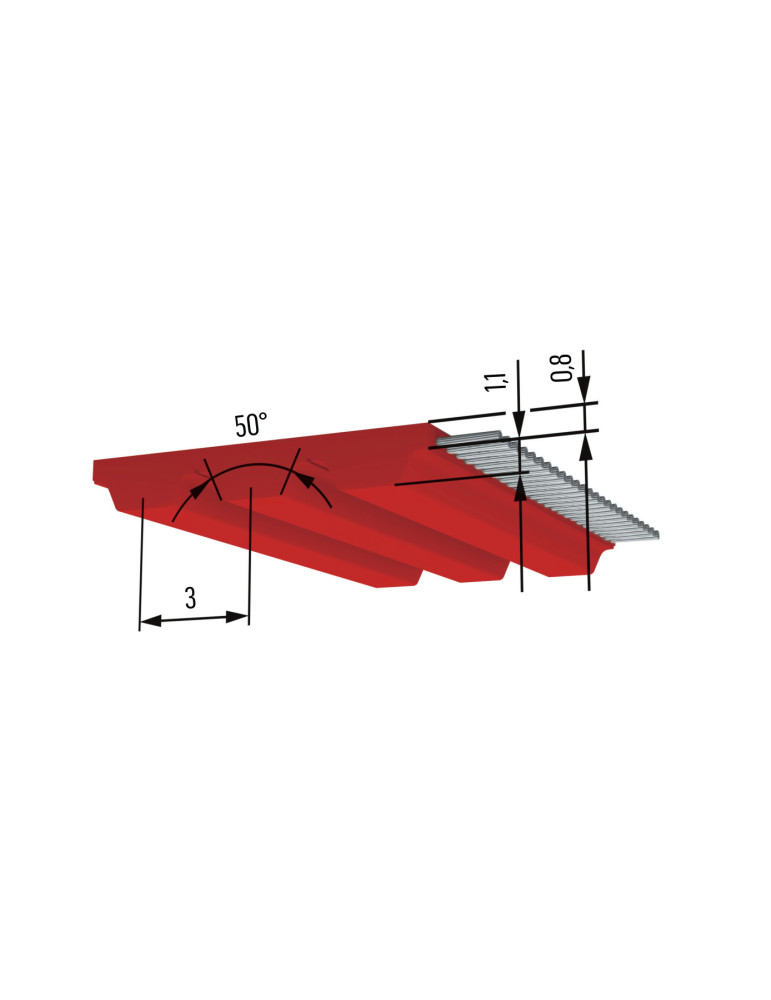

- Profile / Pitch
- AT3
- Profile
- AT
- Pitch
- 3
- PU Material steel tension member
- DNHU 9333
- Shore hardness steel tension member belt
- 93 ShA
- Temperature range of steel tension member belt
- -20 à 100 °C
- Winding
- wire
- P max
- ≤ 6 kW
- Steel tension member permissible force FN
- 1608 N
- N max
- 20000 tr/min
- V max
- 80 m/s
- Standard belt lengths
- 300, 450, 600, 900, 270, 150, 201, 252, 267, 351, 399, 417, 501, 549, 639, 648, 714, 816, 1011 mm
- Belt width
- 25 mm
- Weight
- 0,065 kg/m
- Number of teeth
- 90, 100, 150, 200, 300, 133, 167, 50, 84, 89, 139, 213, 238, 67, 117, 183, 216, 272, 337
- Z min alternating bending E cable
- 20
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 20 mm
- Ø min alternée simple câble E
- 20 mm
