BINDER premium 100 ATP15 GEN III

BINDER premium 100 ATP15 GEN III

BINDER premium 75 ATP15 GEN III

BINDER premium 150 ATP15 GEN III

Synchroflex® GEN III belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERpremium

Product range power belts: Synchroflex® GEN III belt

Applications: High performance application

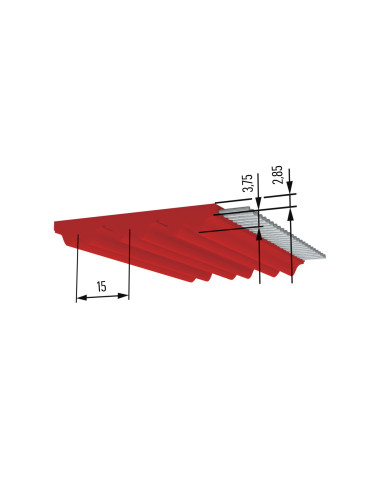

Profile / Pitch: ATP15

Profile: ATP

Pitch: 15

PU Material steel tension member: DNHU 9333

Shore hardness steel tension member belt: 93 ShA

Temperature range of steel tension member belt: -20 à 100 °C

Winding: wire

P max: ≤220 kW

Steel tension member permissible force FN: 28800 N

N max: 10000 tr/min

V max: 50 m/s

Standard belt lengths: 1260, 1125, 1560, 1185 mm

Belt width: 100 mm

Weight: 0,872 kg/m

Number of teeth: 75, 84, 79, 104

Z min alternating bending E cable: 25

Z min single bending standard cable: 20

Ø min Flexion simple câble standard: 100 mm

Z min alternating bending standard cable: 30

Ø min alternée simple câble standard: 160 mm

Z min single bending E cable: 18

Ø min Flexion simple câble E: 80 mm

Ø min alternée simple câble E: 120 mm
