BINDER premium 25 ATP10 GEN III

BINDER premium 25 ATP10 GEN III

BINDER access 16 ATP10 GEN III

BINDER premium 32 ATP10 GEN III

Synchroflex® GEN III belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERpremium

Product range power belts: Synchroflex® GEN III belt

Applications: High performance application

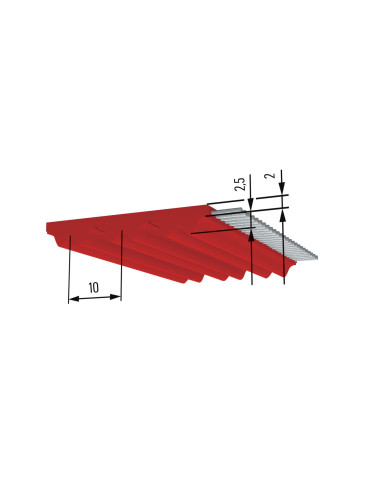

Profile / Pitch: ATP10

Profile: ATP

Pitch: 10

PU Material steel tension member: DNHU 9333

Shore hardness steel tension member belt: 93 ShA

Temperature range of steel tension member belt: -20 à 100 °C

Winding: wire

P max: ≤ 150 kW

Steel tension member permissible force FN: 5000 N

N max: 10000 tr/min

V max: 60 m/s

Standard belt lengths: 920, 1280, 1400, 630, 700, 840, 890, 1800, 780, 1010, 1080, 1150, 660, 1650 mm

Belt width: 25 mm

Weight: 0,17 kg/m

Number of teeth: 115, 140, 180, 66, 70, 92, 78, 165, 84, 89, 101, 108, 63, 128

Z min single bending standard cable: 15

Ø min Flexion simple câble standard: 50 mm

Z min alternating bending standard cable: 25

Ø min alternée simple câble standard: 120 mm
