BINDER access 150 ATP10 SYN

BINDER access 150 ATP10 SYN

BINDER access 100 ATP10 SYN

BINDER access 25 ATP15 SYN

Synchroflex® high power belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Tangential force transmissible by the teeth

Range: BINDERaccess

Product range power belts: Synchroflex® high power belt

Applications: High performance application

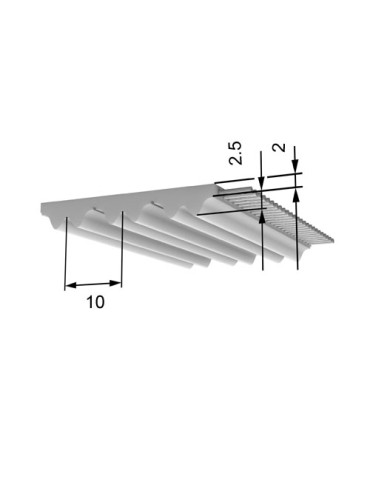

Profile / Pitch: ATP10

Profile: ATP

Pitch: 10

PU Material steel tension member: DEDU 8600

Shore hardness steel tension member belt: 88 ShA

Temperature range of steel tension member belt: -20 à 80 °C

Winding: wire

P max: ≤ 100 kW

Steel tension member permissible force FN: 24500 N

N max: 10000 tr/min

V max: 60 m/s

Standard belt lengths: 920, 1280, 1400, 630, 700, 840, 890, 1800, 780, 1010, 1080, 1150, 660, 1650 mm

Belt width: 150 mm

Weight: 0,9 kg/m

Number of teeth: 115, 140, 180, 66, 70, 92, 78, 165, 84, 89, 101, 108, 63, 128

Z min alternating bending E cable: 20

Z min single bending standard cable: 15

Ø min Flexion simple câble standard: 50 mm

Z min alternating bending standard cable: 25

Ø min alternée simple câble standard: 120 mm

Z min single bending E cable: 12

Ø min Flexion simple câble E: 50 mm

Ø min alternée simple câble E: 80 mm
