BINDER premium 75 AT8 MOVE
Home
Belts,Pulleys, Accessories
Belts
Power belts
BINDER premium 75 AT8 MOVE
BINDER premium 75 AT8 MOVE Power belts
BRECOFLEXmove ® belt
Accueil
|
Belts,Pulleys, Accessories
|
Belts
|
Power belts
|
BINDER premium 75 AT8 MOVE
BINDER premium 75 AT8 MOVE
BINDER premium 50 AT8 MOVE
BINDER premium 100 AT8 MOVE
BRECOFLEXmove ® belt
Power belts
Add to Wishlist
Download PDF
Print
Grayed out functions require you to be logged in to your account
login to my account
Share
Tweet
Pinterest

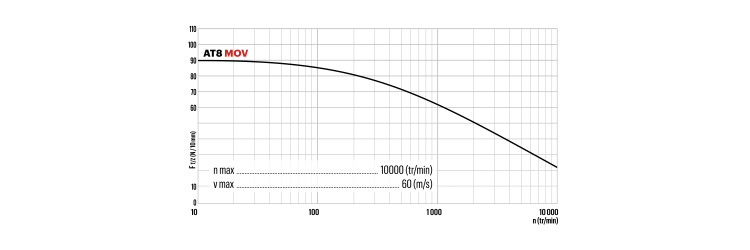

Tangential force transmissible by the teeth
Product range
Technical characteristics
Mass and dimensions
Mechanical data
Kinematic data
Others
Range
BINDERpremium
Product range power belts
BRECOFLEXmove ® belt
Applications
High performance application

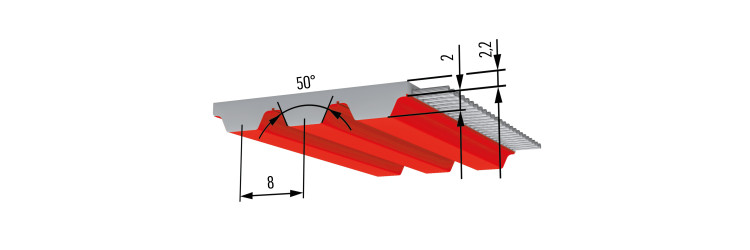

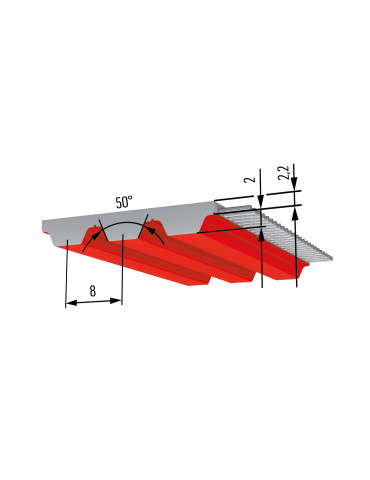

Profile / Pitch
AT8
Profile
AT
Pitch
8
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
Winding
wire
Minimum length
≥720 mm
Standard belt lengths
720, 776, 784, 800, 880, 896, 912, 920, 960, 992, 1008, 1040, 1120, 1160, 1200, 1224, 1280, 1304, 1328, 1360, 1424, 1440, 1520, 1600, 1760, 1792, 1800, 2000, 2200, 2248, 2400, 2520, 2600, 2800, 2840, 3008, 3200, 3408, 3600, 3808, 3999 mm
Belt width
75 mm
Weight
0,508 kg/m
Number of teeth
90, 97, 98, 100, 110, 112, 114, 115, 120, 124, 126, 130, 140, 145, 150, 153, 160, 163, 166, 170, 178, 180, 190, 200, 220, 224, 225, 250, 275, 281, 300, 315, 325, 350, 355, 376, 400, 426, 450, 476, 503
P max
≤80 kW
Steel tension member permissible force FN
20200 N
N max
10000 tr/min
V max
60 m/s
Z min single bending standard cable
22
Ø min Flexion simple câble standard
60 mm
Z min alternating bending standard cable
32
Ø min alternée simple câble standard
120 mm
