BINDER custom 20 AT3 BFX Power belts
BRECOFLEX® standard belt
BRECOFLEX® standard belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® standard belt
- Applications
- Precision application

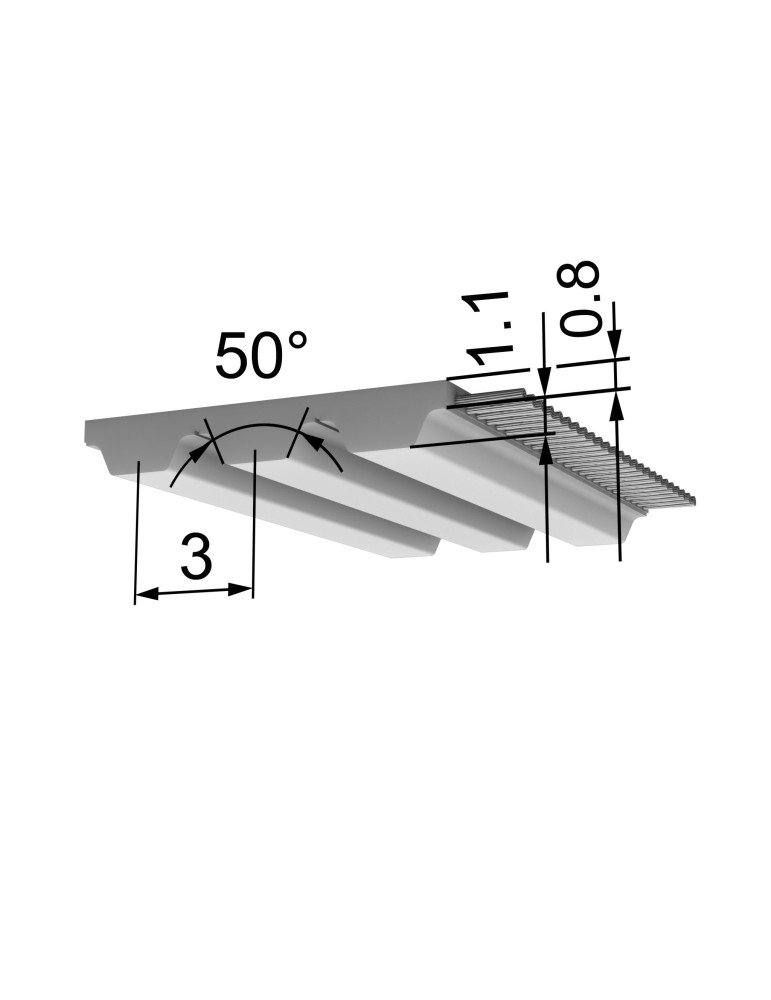

- Profile / Pitch
- AT3
- Profile
- AT
- Pitch
- 3
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤5 kW
- Steel tension member permissible force FN
- 850 N
- Stainless steel member permissible force FN
- 810 N
- N max
- 20000 tr/min
- V max
- 80 m/s
- Minimum length
- ≥720 mm
- Standard belt lengths
- 720, 1215, 819, 918, 1017, 1116, 1314, 1413, 1512, 1611, 1701 mm
- Belt width
- 20 mm
- Weight
- 0,046 kg/m
- Number of teeth
- 240, 373, 273, 306, 339, 405, 438, 471, 504, 537, 575
- Z min alternating bending E cable
- 20
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 20 mm
- Ø min alternée simple câble E
- 20 mm
- Z min single bending stainless steel cable
- 20
- Ø min Flexion simple câble Inox
- 30 mm
- Z min alternating bending stainless steel cable
- 30
- Ø min alternée simple câble Inox
- 40 mm
