BINDER custom 32 T20 DL BFX

BRECOFLEX® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account

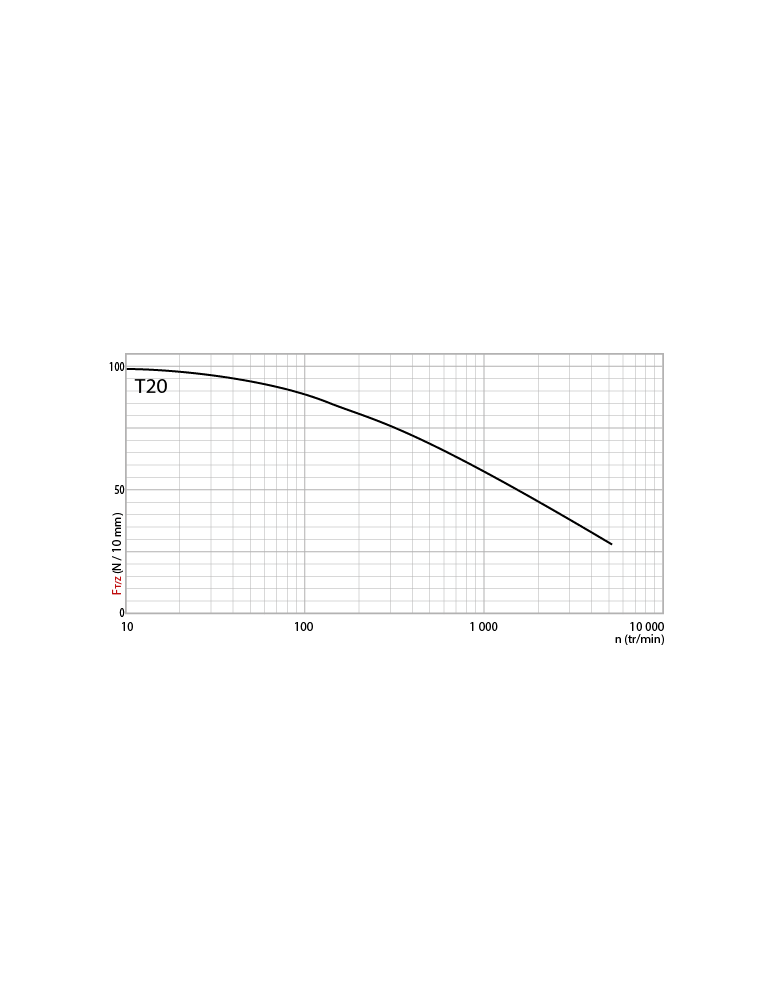

Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® standard belt
Applications
Simple application
Profile / Pitch
T20
Profile
T
Pitch
20
Double toothed belt
DL
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤100 kw kW
Steel tension member permissible force FN
4750 N
Stainless steel member permissible force FN
3420 N
N max
6500 tr/min
V max
40 m/s
Minimum length
≥1500 mm
Standard belt lengths
1600, 2000, 4000, 2240, 2660, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 3000, 4500, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 3560, 3760, 3160, 3360, 4260, 4760, 8500, 2600, 3620, 9003 mm
Belt width
32 mm
Weight
0,319 kg/m
Number of teeth
80, 90, 100, 112, 125, 130, 140, 150, 200, 250, 300, 315, 355, 400, 450, 85, 280, 75, 95, 133, 168, 225, 78, 425, 106, 188, 265, 335, 375, 118, 158, 213, 238, 181
Z min alternating bending E cable
22
Z min single bending standard cable
15
Ø min Flexion simple câble standard
120 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
12
Ø min Flexion simple câble E
100 mm
Ø min alternée simple câble E
120 mm
Z min single bending stainless steel cable
20
Ø min Flexion simple câble Inox
130 mm
Z min alternating bending stainless steel cable
30
Ø min alternée simple câble Inox
180 mm
