BINDER custom 32 T10 BFX Power belts
BRECOFLEX® standard belt
BRECOFLEX® standard belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® standard belt
- Applications
- Simple application

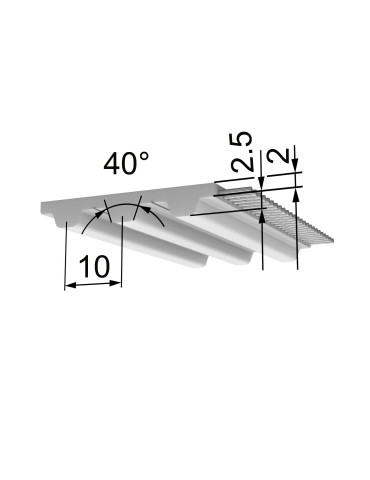

- Profile / Pitch
- T10
- Profile
- T
- Pitch
- 10
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤30 kW
- Steel tension member permissible force FN
- 2300 N
- Stainless steel member permissible force FN
- 1840 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Minimum length
- ≥500 mm
- Standard belt lengths
- 720, 920, 960, 1000, 4000, 1400, 1610, 1750, 1960, 2800, 500, 600, 630, 700, 840, 890, 900, 1420, 1500, 560, 880, 780, 990, 2360, 2500, 2650, 3000, 3150, 3350, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 810, 970, 980, 1080, 11
- Belt width
- 32 mm
- Weight
- 0,145 kg/m
- Number of teeth
- 90, 115, 125, 140, 150, 250, 300, 315, 400, 450, 500, 135, 280, 53, 60, 66, 70, 81, 92, 124, 142, 178, 225, 78, 97, 98, 114, 50, 156, 175, 530, 560, 600, 630, 670, 710, 750, 800, 900, 72, 84, 88, 89, 96, 101, 108, 121, 132, 425, 475, 99, 139, 146, 161, 18
- Z min alternating bending E cable
- 12
- Z min single bending standard cable
- 12
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cable
- 20
- Ø min alternée simple câble standard
- 60 mm
- Z min single bending E cable
- 10
- Ø min Flexion simple câble E
- 50 mm
- Ø min alternée simple câble E
- 50 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 80 mm
- Z min alternating bending stainless steel cable
- 40
- Ø min alternée simple câble Inox
- 130 mm
