BINDER custom 16 T5 BFX Power belts
BRECOFLEX® standard belt
BRECOFLEX® standard belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® standard belt
- Applications
- Simple application

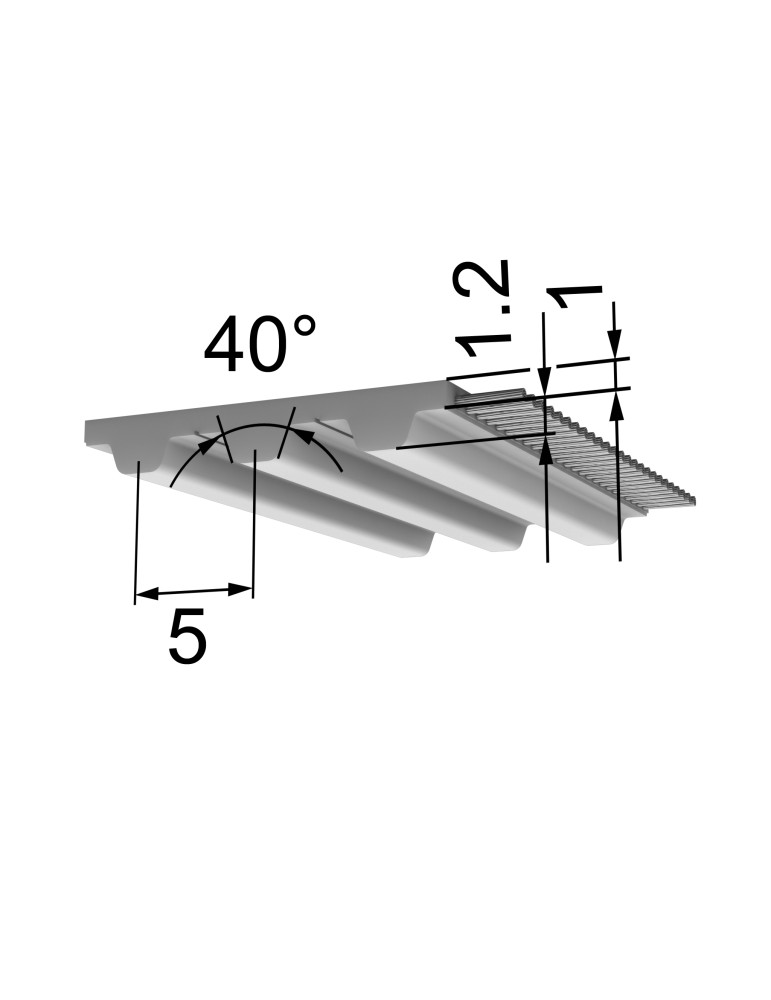

- Profile / Pitch
- T5
- Profile
- T
- Pitch
- 5
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤5 kW
- Steel tension member permissible force FN
- 570 N
- Stainless steel member permissible force FN
- 435 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Minimum length
- ≥720 mm
- Standard belt lengths
- 720, 800, 920, 1000, 1040, 1600, 2000, 4000, 1400, 2240, 2800, 295, 330, 400, 500, 525, 620, 630, 665, 755, 840, 860, 900, 925, 1500, 480, 560, 1160, 1800, 750, 780, 990, 1075, 1100, 1215, 1380, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550,
- Belt width
- 16 mm
- Weight
- 0,034 kg/m
- Number of teeth
- 80, 100, 112, 115, 150, 153, 160, 180, 200, 220, 300, 400, 500, 71, 170, 280, 59, 66, 105, 124, 126, 133, 151, 168, 172, 185, 52, 78, 82, 145, 163, 144, 156, 184, 198, 215, 243, 276, 320, 340, 360, 380, 424, 448, 472, 530, 560, 600, 630, 670, 710, 750, 80
- Z min alternating bending E cable
- 12
- Z min single bending standard cable
- 10
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cable
- 15
- Ø min alternée simple câble standard
- 30 mm
- Z min single bending E cable
- 10
- Ø min Flexion simple câble E
- 18 mm
- Ø min alternée simple câble E
- 18 mm
- Z min single bending stainless steel cable
- 18
- Ø min Flexion simple câble Inox
- 30 mm
- Z min alternating bending stainless steel cable
- 36
- Ø min alternée simple câble Inox
- 60 mm
