BINDER custom 75 ATP10 BFX Power belts
High power BRECOFLEX® belt
High power BRECOFLEX® belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- High power BRECOFLEX® belt
- Applications
- High performance application

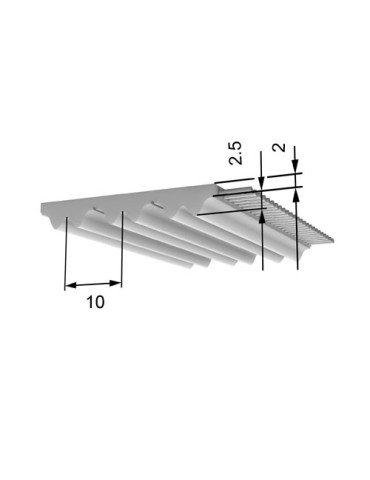

- Profile / Pitch
- ATP10
- Profile
- ATP
- Pitch
- 10
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤ 100 kW
- Steel tension member permissible force FN
- 12000 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Minimum length
- ≥1100 mm
- Standard belt lengths
- 1600, 2000, 4000, 2240, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300 mm
- Belt width
- 75 mm
- Weight
- 0,45 kg/m
- Number of teeth
- 150, 160, 180, 200, 224, 250, 300, 315, 355, 400, 450, 500, 170, 190, 236, 280, 530, 560, 600, 630, 425, 475, 265, 335, 375, 212
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 50 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 120 mm
- Z min single bending E cable
- 12
- Ø min Flexion simple câble E
- 50 mm
- Ø min alternée simple câble E
- 80 mm
