BINDER custom 32 ATS15 BFX Power belts
High power BRECOFLEX® belt
High power BRECOFLEX® belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- High power BRECOFLEX® belt
- Applications
- High performance application

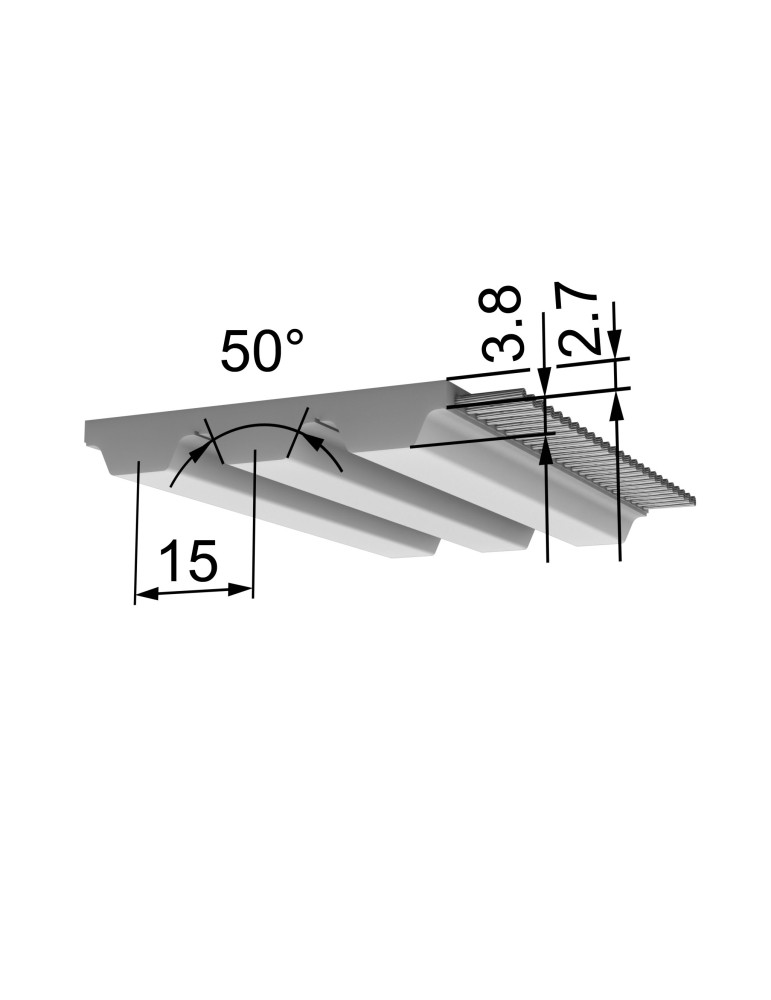

- Profile / Pitch
- 15,00 ATS
- Profile
- ATS
- Pitch
- 15
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤ 160 kW
- Steel tension member permissible force FN
- 7995 N
- Stainless steel member permissible force FN
- 6370 N
- N max
- 8000 tr/min
- V max
- 48 m/s
- Minimum length
- ≥1500 mm
- Standard belt lengths
- 1500, 1800, 3000, 3750, 4500, 6000, 6300, 7500, 1590, 1710, 1905, 1995, 2250, 2505, 2790, 3285, 3495, 4005, 4245, 4740, 4995, 5295, 5595, 6705, 7095, 5790 mm
- Belt width
- 32 mm
- Weight
- 0,28 kg/m
- Number of teeth
- 100, 120, 150, 200, 250, 300, 400, 500, 127, 133, 167, 144, 106, 186, 219, 233, 267, 283, 316, 333, 353, 373, 384, 420, 447, 473
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 120 mm
- Z min alternating bending standard cable
- 40
- Ø min alternée simple câble standard
- 250 mm
- Z min single bending stainless steel cable
- 30
- Ø min Flexion simple câble Inox
- 180 mm
- Z min alternating bending stainless steel cable
- 60
- Ø min alternée simple câble Inox
- 300 mm
