BINDER custom 50 TK5K6 BFX Power belts
BRECOFLEX® Self-guiding belt
BRECOFLEX® Self-guiding belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® Self-guiding belt
- Applications
- Self-guided precision application

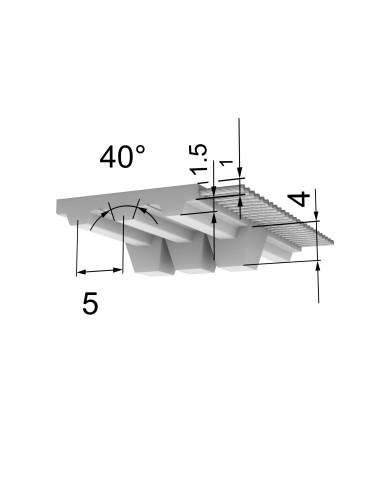

- Profile / Pitch
- TK5
- Profile
- TK
- Pitch
- 5
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Guide profile
- K6
- Winding
- wire
- P max
- ≤5 kW
- Steel tension member permissible force FN
- 1920 N
- Stainless steel member permissible force FN
- 1460 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Minimum length
- ≥720 mm
- Standard belt lengths
- 720, 800, 920, 1040, 1600, 2000, 4000, 1400, 2240, 2800, 700, 755, 840, 860, 900, 1500, 1800, 750, 780, 990, 1075, 1100, 1215, 1380, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 75
- Belt width
- 50 mm
- Weight
- 0,123 kg/m
- Number of teeth
- 150, 160, 180, 220, 300, 400, 500, 170, 280, 151, 168, 172, 163, 144, 156, 184, 198, 215, 243, 276, 320, 340, 360, 380, 424, 448, 472, 530, 560, 600, 630, 670, 710, 750, 800, 850, 900, 950, 1000, 1060, 1120, 1200, 1260, 1340, 1420, 1500, 182, 189, 208, 23
- Z min alternating bending E cable
- 25
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 40 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 60 mm
- Z min single bending E cable
- 25
- Ø min Flexion simple câble E
- 40 mm
- Ø min alternée simple câble E
- 60 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 40 mm
- Z min alternating bending stainless steel cable
- 36
- Ø min alternée simple câble Inox
- 60 mm
